The intricate network of sewer systems plays a crucial role in modern urban infrastructure, ensuring the efficient removal of wastewater from residential, commercial, and industrial areas. However, clogs within these systems can lead to significant disruptions, environmental hazards, and costly repairs. One of the most effective tools in diagnosing and addressing these blockages is the sewer inspection camera. This technology has revolutionized the way professionals approach sewer maintenance, providing real-time visuals and precise location data of clogs. In this article, we delve into the mechanisms of sewer cameras, their application during clogs, and their impact on modern plumbing practices.

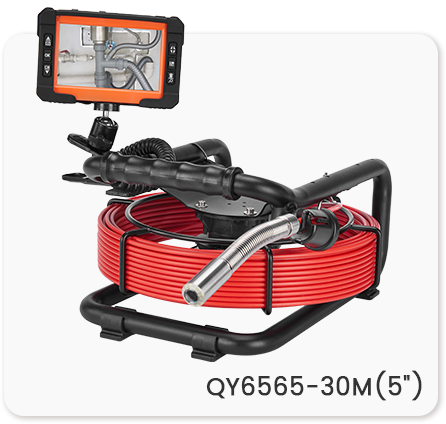

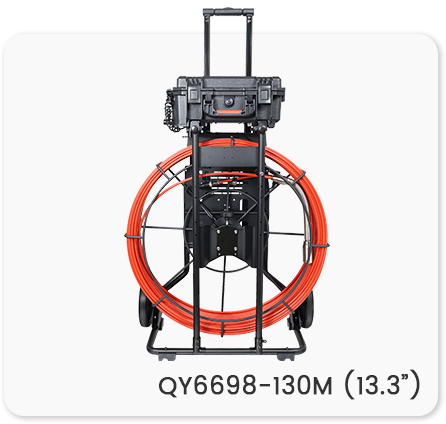

Sewer cameras are specialized waterproof video cameras designed to navigate through sewer pipes and drains. They are typically attached to a flexible rod, known as a sewer pushrod camera, which allows them to traverse the twists and turns of the sewer system. The camera transmits real-time video footage to a connected monitor, enabling technicians to observe the internal conditions of the pipes without invasive excavation.
A typical sewer camera system comprises several key components:
1. **Camera Head**: Equipped with high-resolution imaging sensors and often featuring LED lights for illumination in dark pipes.
2. **Pushrod Cable**: A flexible rod that can bend around pipe corners and is durable enough to withstand harsh sewer environments.
3. **Monitor and Control Unit**: Displays live footage and may include recording capabilities, allowing for further analysis and documentation.
4. **Locating Equipment**: Some systems integrate transmitters in the camera head for blockage locating, aiding in pinpointing the exact position of a clog.
When a clog is suspected, a sewer camera is inserted into the drain to identify the nature and location of the obstruction. The process involves several steps to ensure accurate diagnosis:
Technicians carefully feed the pushrod into the sewer line through an access point. The flexible nature of the rod allows the camera to navigate bends and joints within the pipes. As the camera advances, live video feeds provide immediate visual feedback.
Upon reaching the clog, the high-definition visuals enable the technician to determine the clog's composition—whether it's caused by tree roots, grease buildup, foreign objects, or pipe collapses. This distinction is crucial for deciding the appropriate remediation method.
Advanced sewer cameras incorporate sonde transmitters that emit signals detectable above ground. By using a receiver, technicians can trace the signal to locate the exact position and depth of the clog. This feature is invaluable for minimizing excavation and reducing repair costs.
Various sewer camera models cater to different pipe sizes and inspection needs. Understanding these types helps in selecting the most effective equipment for a given situation.
While standard definition cameras provide adequate imaging for general inspections, an HD sewer camera offers superior image clarity. High-definition cameras capture finer details, making it easier to identify small cracks, corrosion, and subtle blockages that might be missed with lower-resolution equipment.
Self-leveling cameras maintain a consistent orientation, ensuring that the video feed is always upright. This feature enhances the ease of interpretation and is particularly beneficial when diagnosing complex sewer systems.
For comprehensive inspections, pan and tilt cameras allow technicians to adjust the viewing angle remotely. This capability is essential for inspecting lateral connections and hard-to-see areas within the pipes.
Identifying the clog is only the first step; determining the best removal strategy is equally important. Sewer cameras provide invaluable data that influences the decision-making process.
By visualizing the clog, technicians can evaluate its severity. For instance, a simple grease buildup may require hydro-jetting, while a more severe obstruction like tree roots might necessitate mechanical removal or pipe replacement.
Detailed footage helps in planning whether to repair a section of the pipe or replace it entirely. It also aids in estimating the scope of work and resources required, ultimately leading to more accurate project timelines and budgets.
Several studies have demonstrated the effectiveness of sewer cameras in identifying and resolving clogs. A 2020 report by the American Public Works Association showed that municipalities employing sewer cameras experienced a 40% reduction in emergency repairs due to proactive maintenance facilitated by these inspections.
In cities like New York, sewer cameras have been integral in addressing aging infrastructure. By systematically inspecting sewer lines, the city has prioritized repairs and upgrades, preventing catastrophic failures and environmental contamination.
Industries with extensive wastewater systems, such as chemical plants, utilize sewer cameras to monitor pipe integrity. Early detection of corrosion or buildup ensures compliance with environmental regulations and avoids costly shutdowns.
Technological innovations continue to enhance the functionality of sewer cameras, making them more efficient and user-friendly.
Modern sewer cameras now integrate with software platforms that allow for the recording, annotation, and sharing of inspection data. This integration facilitates better communication between field technicians and engineers.
Advancements in materials have led to more robust pushrods and camera housings. The latest sewer drain camera models are capable of withstanding higher pressures and temperatures, extending their utility in challenging environments.
Proper training is essential for technicians to maximize the benefits of sewer cameras. Understanding equipment operation, maintenance, and safety protocols ensures accurate diagnostics and prolongs the life of the equipment.
Organizations like the National Association of Sewer Service Companies (NASSCO) offer certification programs that educate technicians on standards for sewer inspection and condition assessment.
Routine maintenance of sewer cameras, including cleaning and inspection of components, prevents equipment failure during critical operations. Adhering to manufacturer guidelines is paramount for operational longevity.
The use of sewer cameras extends beyond immediate clog resolution, offering significant environmental and economic advantages.
Preventing sewage overflows protects waterways and ecosystems from contamination. Early detection and repair minimize the risk of pollutants entering the environment.
By accurately diagnosing problems, sewer cameras eliminate unnecessary excavation and guesswork, reducing labor and material costs. A study by the Environmental Protection Agency highlighted that municipalities could save up to 25% on maintenance expenses through the use of sewer inspection technologies.
While sewer cameras are powerful tools, they are not without challenges. Understanding these limitations is essential for effective application.
In some cases, pipe configurations or obstructions may prevent the camera from reaching the clog. Extremely tight bends or collapsed sections of pipe can impede progress.
Accurate interpretation of visual data requires expertise. Misdiagnosis can lead to inappropriate repair strategies, underscoring the need for trained professionals.
The evolution of sewer camera technology is poised to continue, with developments that may include artificial intelligence and enhanced sensors.
AI algorithms can potentially analyze video feeds in real-time, identifying issues faster and with greater accuracy than human observation alone. This automation could significantly improve diagnostic efficiency.
Incorporating sensors that detect gas composition, temperature, and structural integrity could provide a more comprehensive assessment of sewer conditions. Such multi-faceted diagnostics would enhance preventative maintenance programs.
Sewer cameras have become indispensable in modern plumbing and infrastructure maintenance. Their ability to provide detailed visuals and precise locations of clogs leads to more effective and efficient resolutions. As technology advances, these tools will likely offer even greater capabilities, further revolutionizing the field. Embracing these innovations not only addresses immediate concerns like clogs but also contributes to sustainable environmental practices and economic savings. For professionals in the industry, staying abreast of the latest developments in sewer camera technology is essential for maintaining a competitive edge and providing top-tier service.
