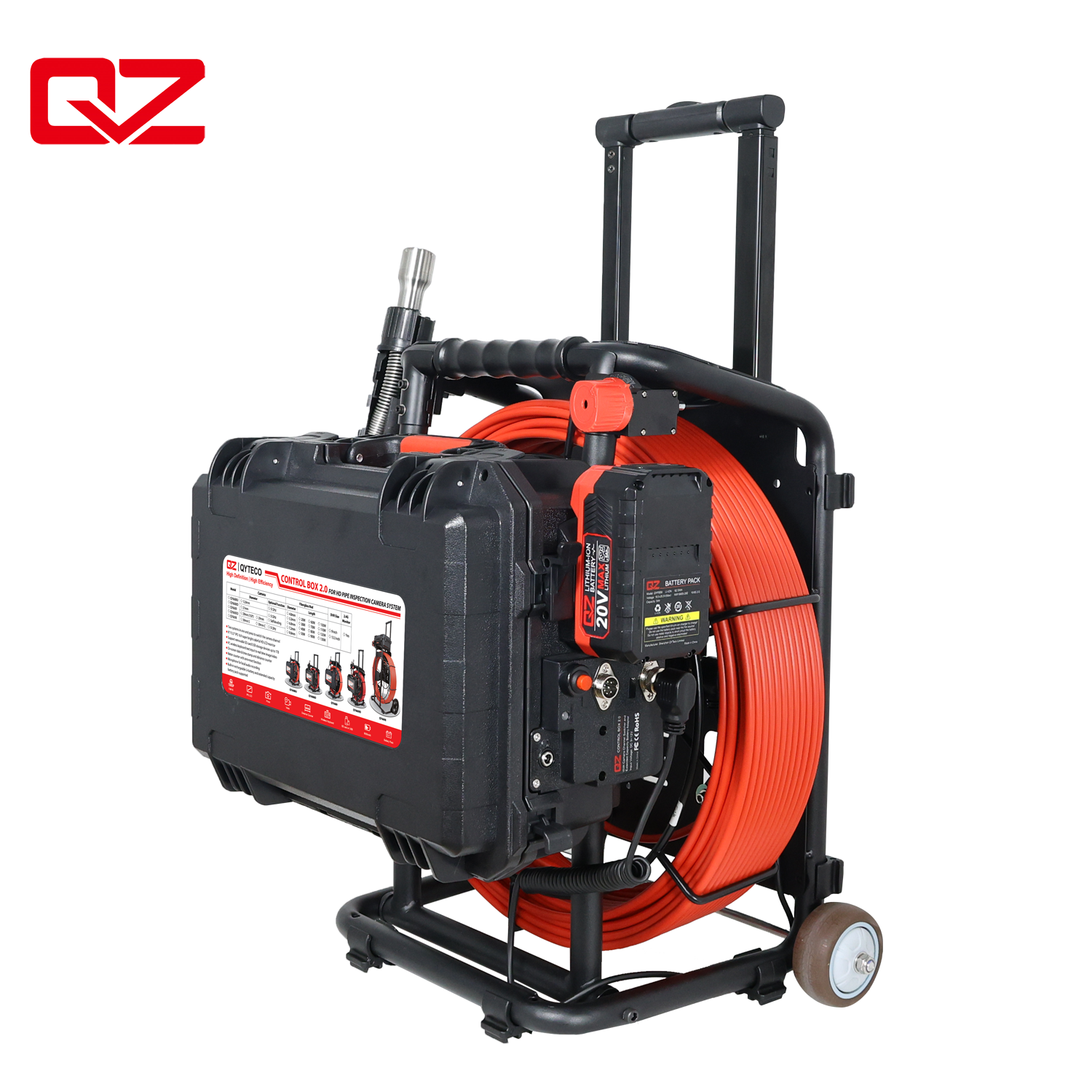

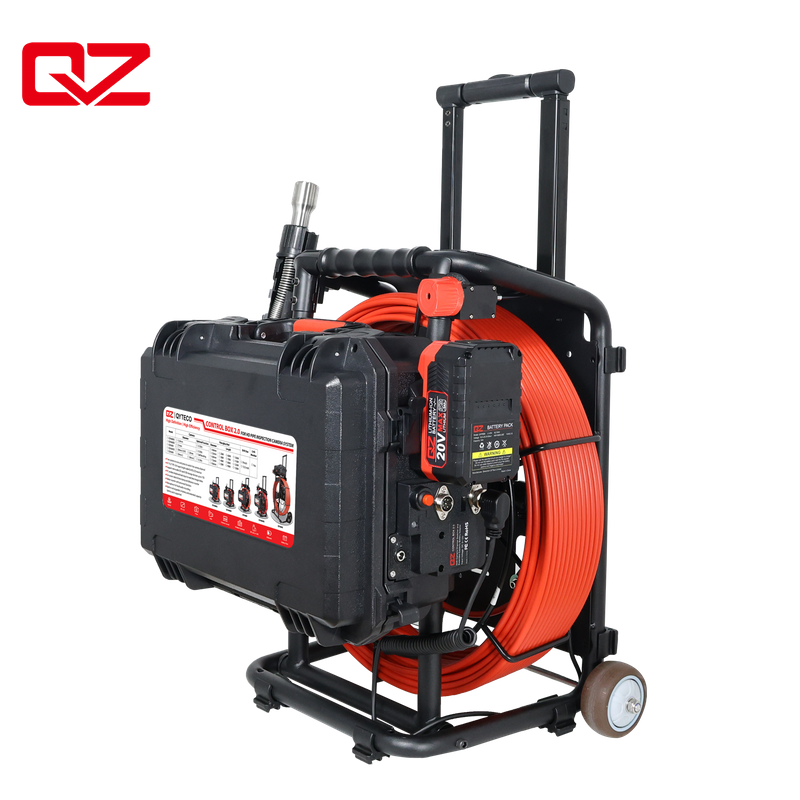

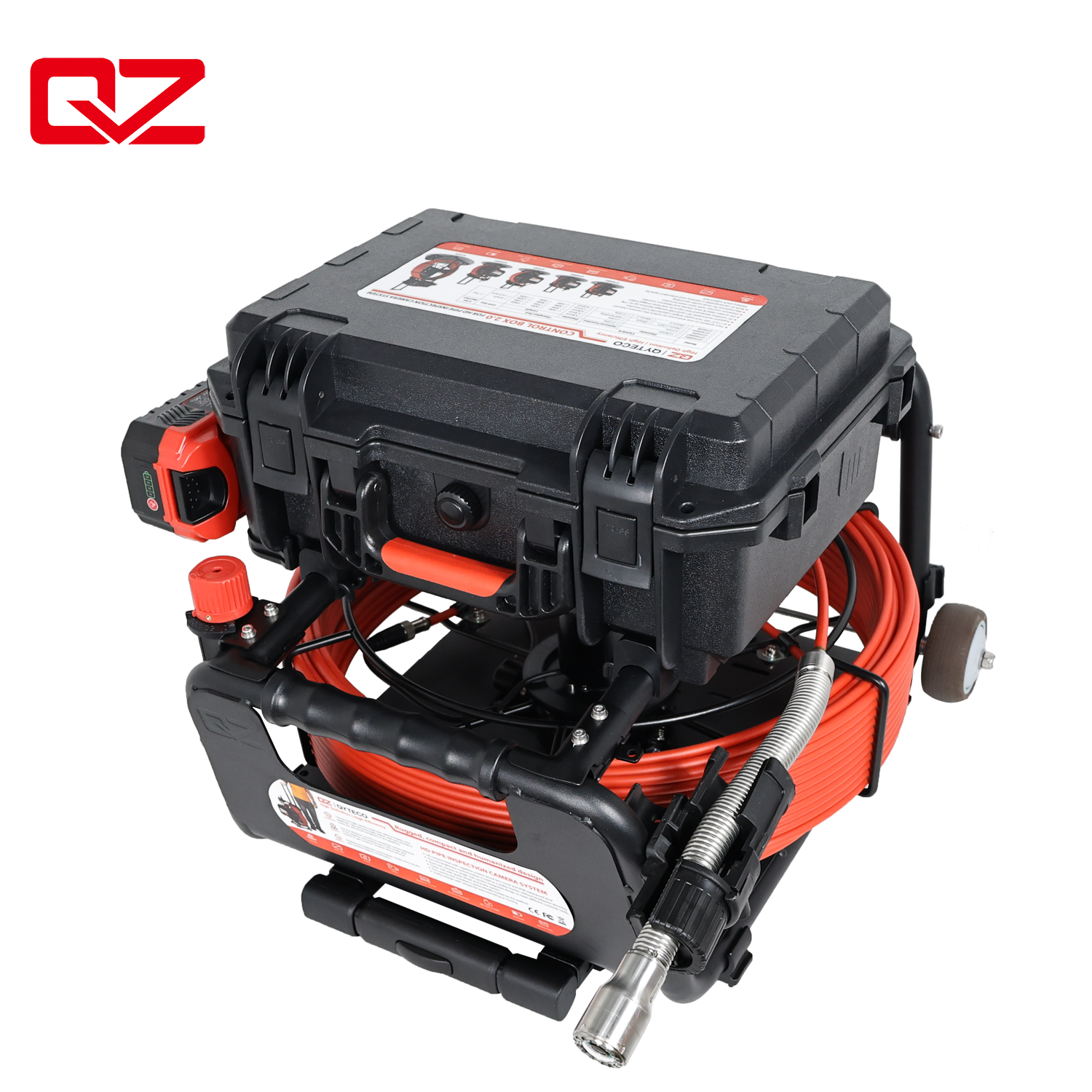

QY6688U
QYTeco
The QY6688D Dual Reel Compact Camera is a versatile, budget-friendly solution for professionals demanding reliability in diverse pipeline inspection scenarios. Designed for contractors, facility managers, and emergency responders, this model prioritizes simplicity without compromising on critical functionalities. Its dual-reel configuration ensures tangle-free cable handling, while the 720p HD camera captures essential details in real time. The compact, modular build adapts to confined spaces, and the long-lasting battery supports extended field operations. From routine drain checks to post-disaster evaluations, the QY6688D delivers consistent performance in commercial, industrial, or residential settings.
1. Precision Imaging: A wide-angle 720p sensor with 4x digital zoom and six intensity-adjustable LEDs provides clear visuals in pipes as narrow as 2 inches.
2. Efficient Dual-Reel Operation: Separate reels for cable deployment and storage enable single-operator workflows, cutting setup time by 30%.
3. Ruggedized Components: The camera head’s IP67 rating ensures functionality underwater up to 3ft for 30 minutes, complemented by a crush-resistant cable jacket.
4. Intuitive Control Panel: The 7-inch anti-glare touchscreen features one-touch recording, freeze-frame, and Wi-Fi connectivity for live client consultations.
5. Extended Mobility: A 12V lithium battery powers 8+ hours of continuous use, with a rapid 2-hour recharge via USB-C or vehicle adapters.
6. Customizable Configurations: Swap between 50ft and 100ft cables or attach optional sonde sensors for non-metallic pipe tracing.
Ideal for:
· Hospitality Sector: Inspect grease traps, kitchen drain lines, or laundry systems in hotels and restaurants to maintain hygiene standards.
· Municipal Storm Drains: Map blockages in culverts or retention basins during seasonal rainfall to mitigate road erosion.
· Manufacturing Facilities: Monitor coolant lines, compressed air ducts, or hydraulic systems for leaks impacting production efficiency.
· Disaster Recovery: Assess earthquake-damaged gas lines or hurricane-flooded sewers to prioritize repair zones.
Model： QY6688U Details
Cable
60M（260ft）6.8mm push rod
Equipped 21mm 120° wide viewing angle head
For 2＂- 5＂（50-125mm）pipelines
Camera heads
Removable, Replaceable Detachable and Field Service
Equipped with multi-functional holders
Brake system
A handy brake system
Turntable design
Easy to control the reel not spinning on
Spinner Wheels
Double spinner wheels design
Shock absorption technology
Anti-slip and anti-corrosion technology
Level Telescopic Handle
Double gear adjustment
First Gear: 25cm
Second Gear: 50cm
Ergonomic Design
Automatic padlock
Camera Holders
Plastic Handle
Spinner wheels and level telescopic handle
