QY6688-9inch-21mm-5.3mm high brightness screen qz cameras optional 512Hz and self-leveling from qyteco

Overview

The QY6688 Professional Sewer Inspection Solution redefines efficiency in subsurface diagnostics through its fusion of ergonomic design and AI-enhanced analytics. Engineered for high-volume inspection teams, this system features a lightweight carbon fiber push rod (9.8kg total weight) and a dual-screen control unit that displays both real-time footage and historical pipe data side-by-side. Its proprietary PipeHealth™ algorithm cross-references inspection findings with municipal infrastructure databases to predict failure risks using ISO 24566-3 standards.

Features

· 4K HDR Imaging: A Sony STARVIS™ sensor captures 3840x2160 resolution video with 120dB dynamic range, exposing defects in shadowed pipe invert areas.

· Tactile Feedback Navigation: Haptic motors in the controller vibrate when the rod encounters resistance, allowing operators to "feel" underground obstacles.

· Multi-Sensor Probe: Integrates a 5MP camera, laser profilometer (±0.1mm accuracy), and ultrasonic thickness gauge into a single 32mm-diameter head.

· Enterprise Cybersecurity: Supports FIPS 140-2 encrypted data storage and role-based access controls for government and utility-scale deployments.

· Rapid Deployment Case: A shockproof, water-resistant transport case with preconfigured cable management enables setup in under 90 seconds.

Applications

Water utilities leverage this system for condition assessment of prestressed concrete cylinders in transmission mains. Civil engineers use the laser profilometer to measure ovality defects in collapsed plastic pipes, while insurance adjusters rely on its timestamped videos as forensic evidence in subsidence claims. The system is also adopted in nuclear power plants for inspecting radioactive waste containment pipes and by heritage conservation teams to document medieval brick sewers without invasive probing.

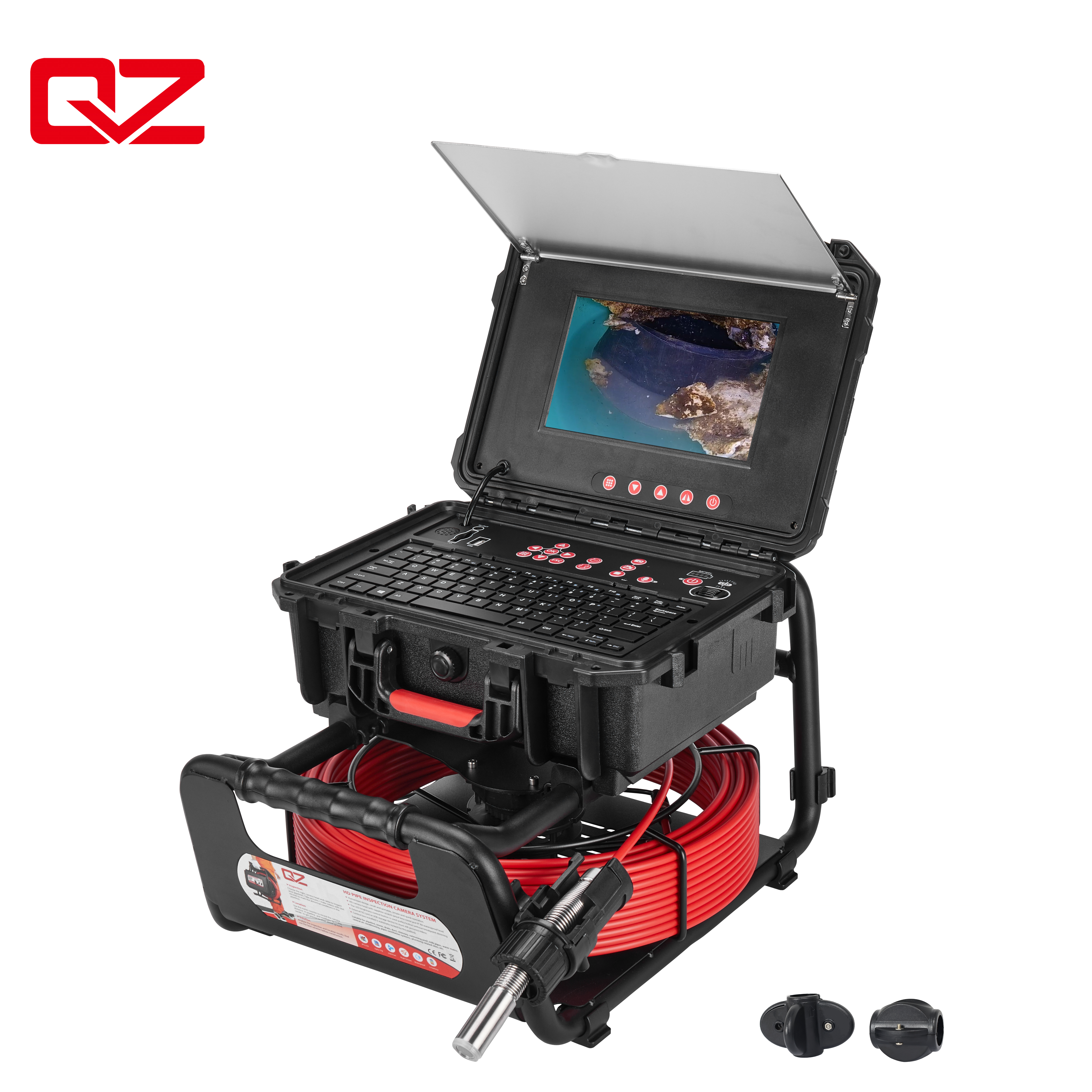

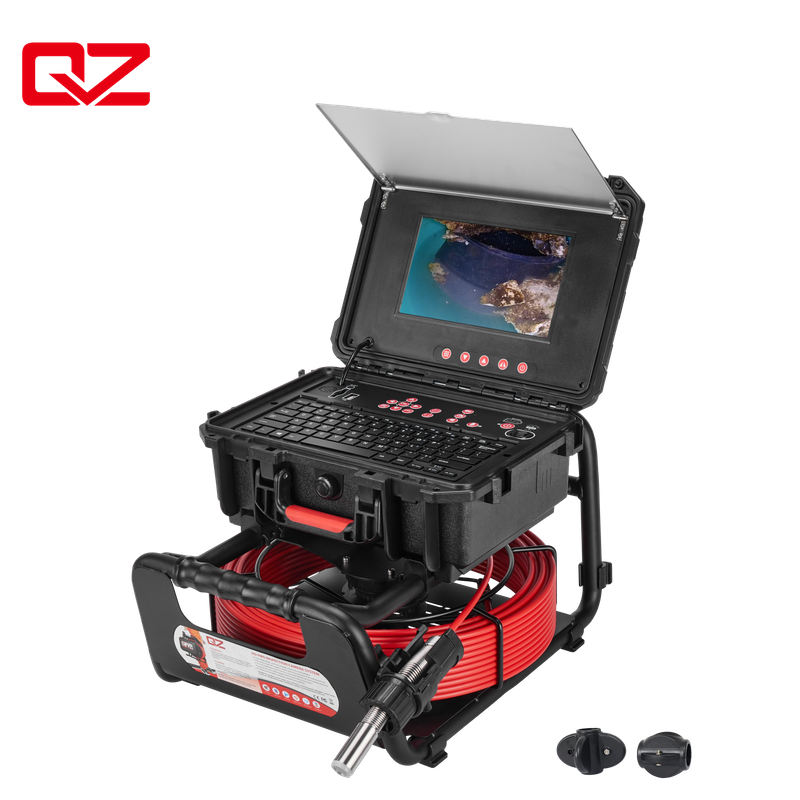

Model: QY6688 Details

The QY6688 series has 9 inch screen, 1920*1080 video and Picture Resolution.

The 21mm camera with 12 high-light LEDs plus an 8x zoom to make details inside the pipe clearly visible.

The camera (1080P) can select 512Hz and Self-leveling. Meanwhile camera head is removable, detachable, field service.

   Control box

• 9inch high definition color LED screen

• 1080P (1920*1080 ) screen resolution

• 1080P (1920*1080)  photograph & video resolution

• Support 1TB SD & 1TB USB (MAX) memory

• (Audio, video and pictures recording)

• PC wireless keyboard

• 8X Time（2X 3X 4X 5X 6X 7X 8X）set zero support

• 9000mAh Li-ion battery (Working time 5~6 hours)

• Support car charger

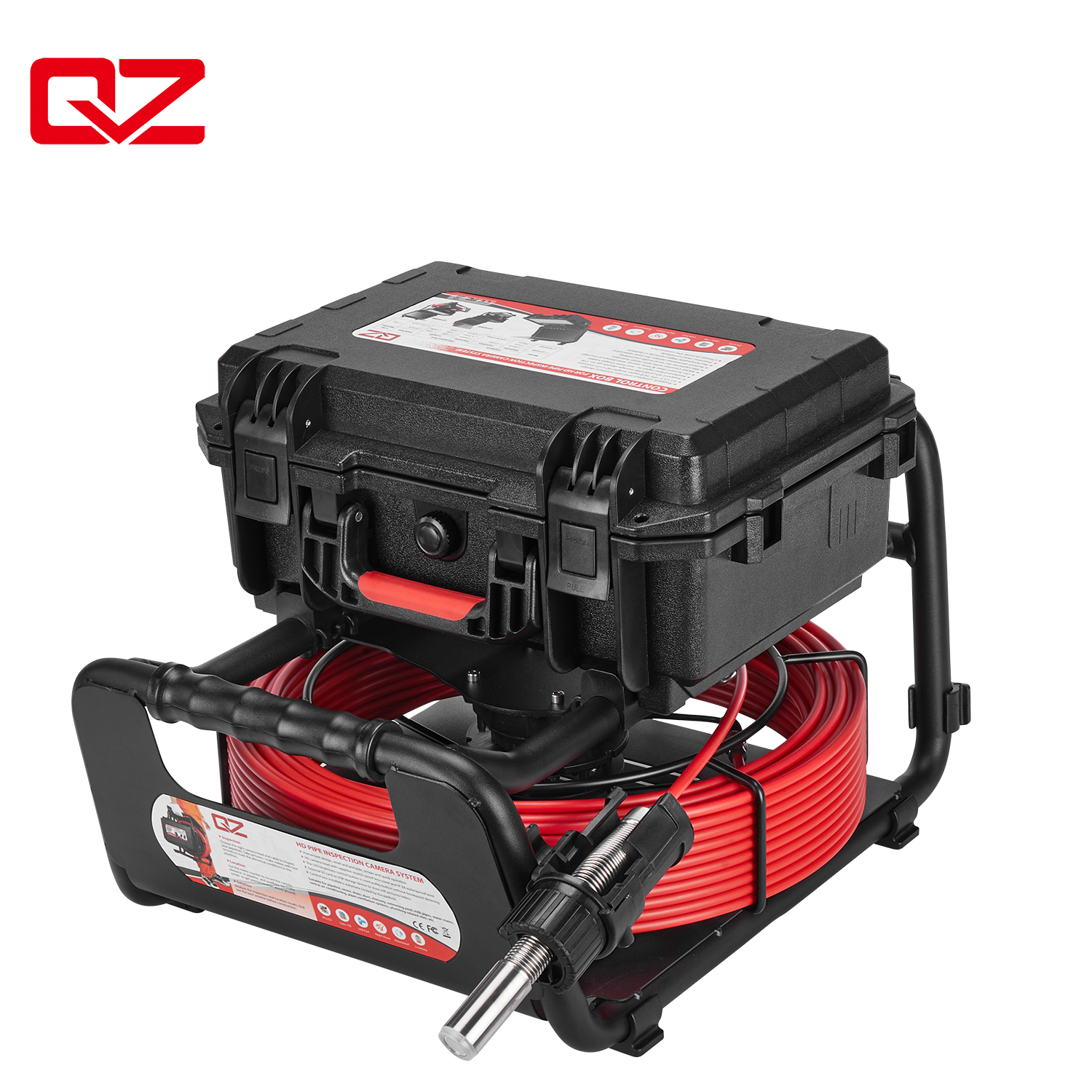

   Cable reel

• 5.3mm (in red) cable diameter

• 10M-50M (33-165ft) reel option

• Support switch Meter & Feet

• Fiberglass push rod

 Camera head

• 21mm (0.8") camera head


• 1/3" COMS sensor

• 1920*1080 (1080P) resolution

• 12 High-Light LEDs (Withe)

• For 2" to 6" (50mm-150mm)

• Optional 512Hz transmitter & Self-leveling

• 21mm X 45 mm (Mine Body)

• Sapphire front lens

• IP68 water resistant

• 304 Stainless Steel Shell

• 100cm (approx.) depth of field

• 15cm (approx.) focus distance

• Water pressure resistance ≤3bar (about 30 meters)

  Skids

• 21mm Skids (46mm/78mm)

  Metal Frame

• Automatic padlock: Quickly install & remove the control box

• Multi-functional camera holder: Hold the head/ stop the cable

• Bracket base: Anti-slip, maintain balance, protective metal frame

• Ergonomics handle: reduce the pressure and anti-slip
