QY6688-13.3inch-29mm-5.3mm
QYTeco
The QY6688 Push Rod Sewer Inspection Camera represents the pinnacle of modern pipeline diagnostic technology, engineered to deliver unmatched clarity and reliability in subterranean inspections. This professional-grade tool is specifically crafted for examining underground sewer lines, stormwater drains, and industrial piping networks with diameters ranging from 50mm to 2000mm. Its modular push-rod system, paired with a military-grade camera probe, enables operators to navigate complex bends, vertical shafts, and sediment-laden environments effortlessly. The QY6688’s real-time diagnostic capabilities empower municipal engineers, plumbing contractors, and environmental auditors to pinpoint issues like fractures, root invasions, and joint separations with surgical precision, significantly reducing guesswork and excavation costs.
· High-Resolution Imaging: The 1/2.8-inch CMOS sensor and f/2.0 aperture lens produce 1080p video at 30fps, enhanced by adaptive noise reduction technology for crystal-clear imaging in turbid water or dark conditions.
· Dual-Lighting System: Six adjustable LED panels (3600-lumen total output) and an auxiliary infrared mode provide optimal illumination while minimizing glare in reflective pipe surfaces.
· Military-Grade Durability: The camera head boasts an IP68/IP69K dual-certified housing, tested to withstand 10-meter submersion for 72 hours and repeated impacts from falling debris.
· Intelligent Push Rod: The segmented fiberglass rod (40m max length) features a helical reinforcement design, achieving a minimum bending radius of 15cm while resisting kinking or torsion fatigue.
· Cross-Platform Connectivity: Stream inspections live to devices via 5GHz Wi-Fi (150-meter range) or wired HDMI output, with compatibility for third-party GIS mapping software like ArcGIS Pro.
· Field-Ready Power System: The hot-swappable 10,000mAh battery supports USB-C PD fast charging and powers both the camera and rod motor for 8-10 hours of continuous use.
Beyond routine sewer inspections, the QY6688 is indispensable for post-disaster infrastructure assessments, such as evaluating earthquake-damaged culverts or flood-compromised drainage systems. Industrial applications include inspecting chemical waste pipelines in manufacturing plants, verifying liner installations in oil refineries, and monitoring slurry transport lines in mining operations. Municipalities deploy it for preventive maintenance of aging concrete storm drains, while residential contractors use it to locate broken septic tanks or collapsed terracotta pipes beneath historic properties.

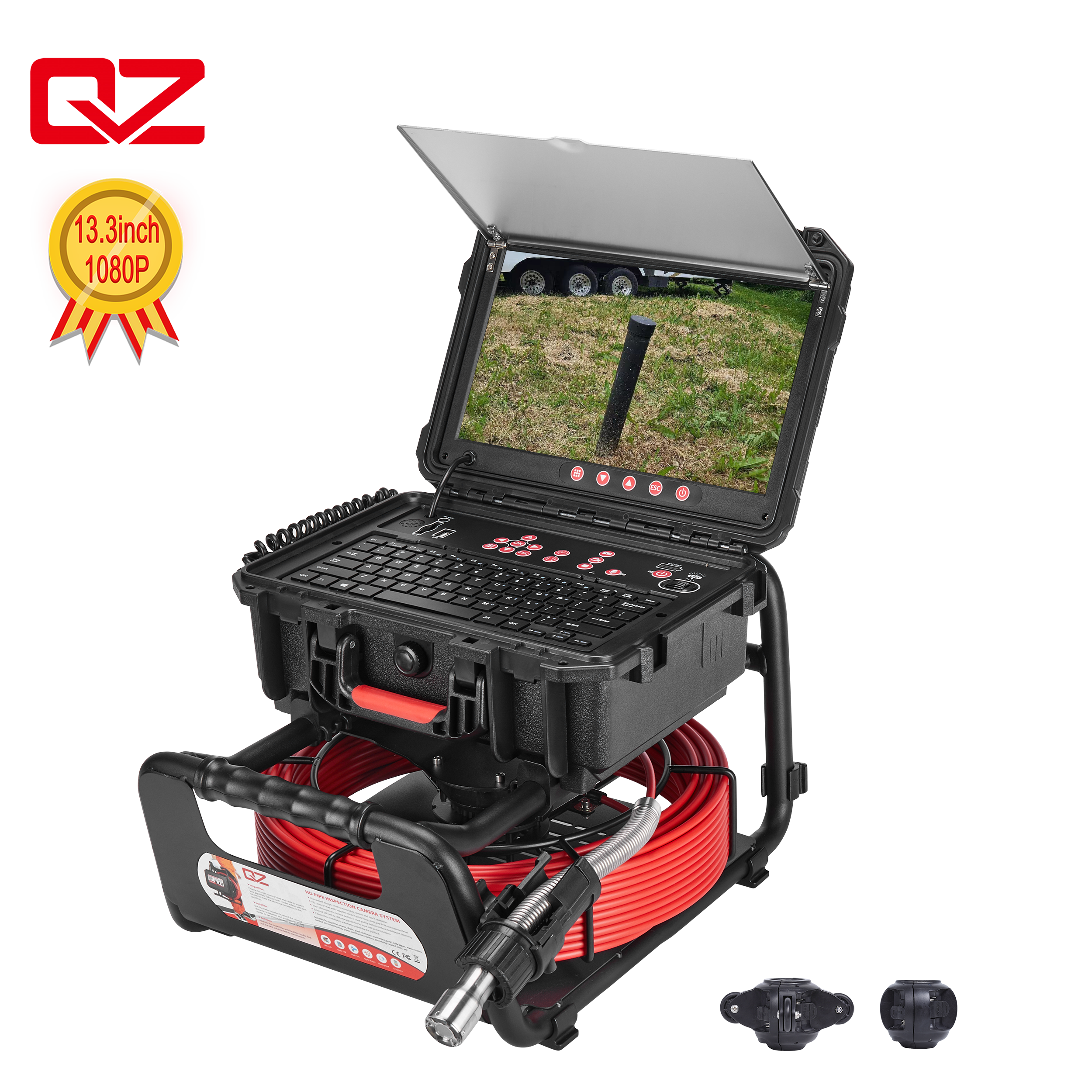

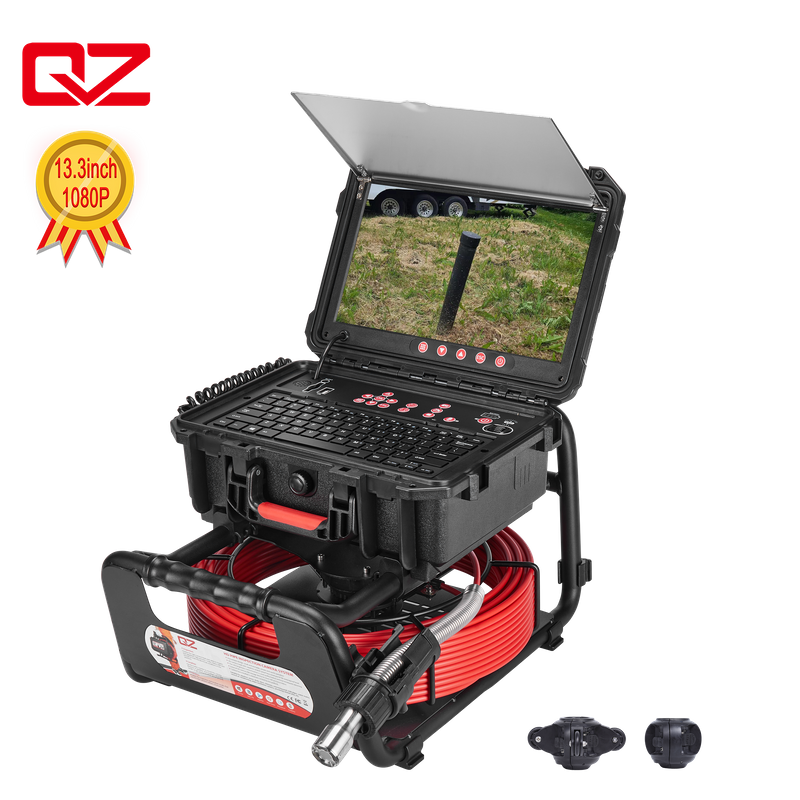

Model: QY6688 29mm 6.8mm reel Details
The QY6688 series has the largest screen size 13.3 inch,
1920*1080 video and Picture Resolution.
The 29mm camera with 12 high-light LEDs plus an 8x zoom.
Equipped with high beam for long distance inspection.
The camera (1080P) can select 512Hz and Self-leveling.
Meanwhile camera head is removable, detachable, field service.
Control box
13.3inch super large bright high definition color LED screen
1080P (1920*1080 ) screen resolution
1080P (1920*1080) photograph & video resolution
Support 1TB SD & 1TB USB (MAX) memory
(Audio, video and pictures recording)
PC wireless keyboard
8X Time（2X 3X 4X 5X 6X 7X 8X）set zero support
9000mAh Li-ion battery (Working time 5~6 hours)
Support car charger
Cable reel
6.8mm (in red) cable diameter
10M-50M (33-165ft) reel option
Support switch Meter & Feet
Fiberglass push rod
Camera head
29mm (1.1") camera head
1/3" COMS sensor
1920*1080 (1080P) resolution
12 High-Light LEDs (Withe)
Equipped low beam and high beam
For 3" to 8" (80mm-200mm)
Optional 512Hz transmitter & Self-leveling
29mm X 50 mm (Mine Body)
Sapphire front lens
IP68 water resistant
304 Stainless Steel Shell
100cm (approx.) depth of field
15cm (approx.) focus distance
Water pressure resistance ≤3bar (about 30 meters)
Skids
29mm Skids (65mm/105mm)

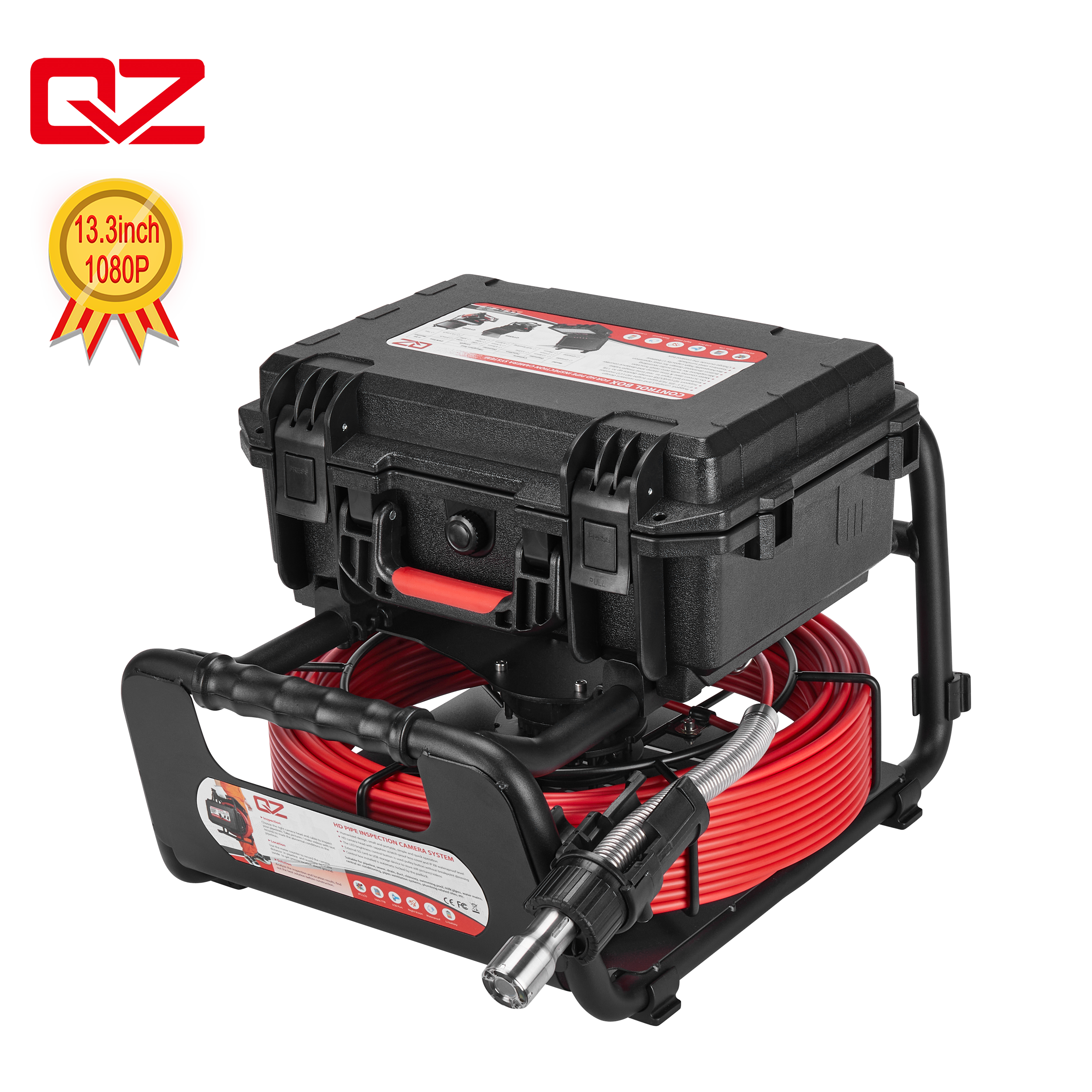

Metal Frame
Automatic padlock: Quickly install & remove the control box
Multi-functional camera holder: Hold the head/ stop the cable
Bracket base: Anti-slip, maintain balance, protective metal frame
Ergonomics handle: reduce the pressure and anti-slip
