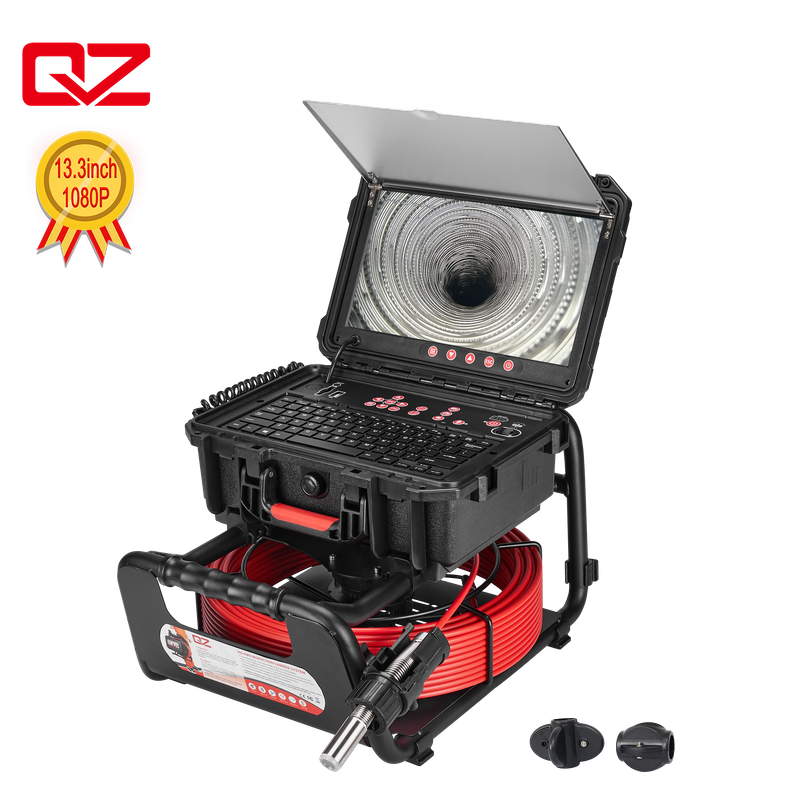

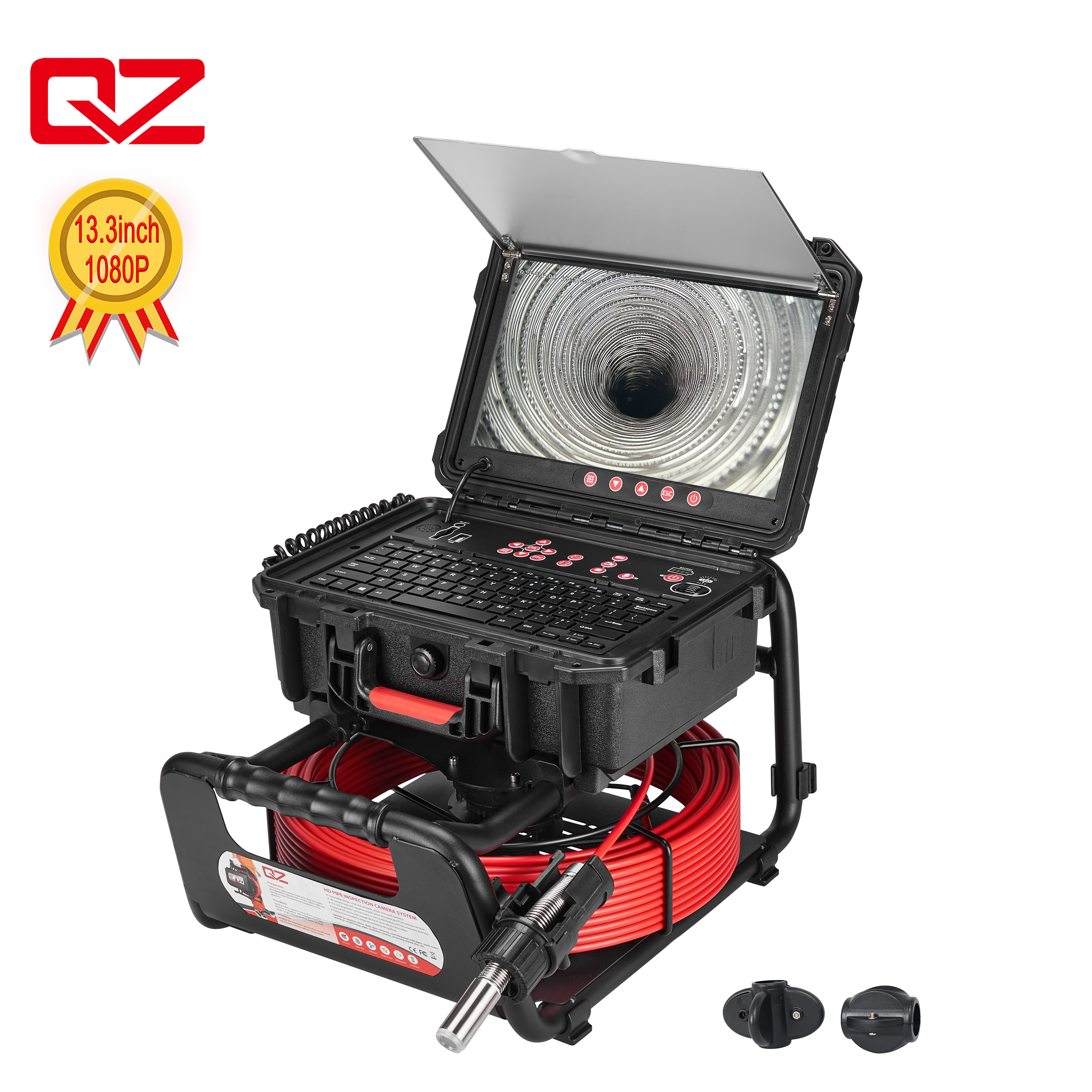

QY6688-13.3inch-21mm-6.8mm qytceo sewer inspection camera with 512Hz and self-leveling for plumber pipeline working

Overview

The QY6688 Next-Gen Push Rod Inspection Camera pioneers predictive maintenance in the pipeline industry through its IoT-enabled ecosystem and machine learning capabilities. This system continuously learns from global inspection datasets to refine its defect recognition models, achieving 98.7% accuracy in identifying 57 pipe anomaly types as per ASTM F1216-16 standards. Its hybrid power system combines lithium batteries with solar-ready charging, ideal for remote inspections in off-grid locations like mountain reservoirs or desert oil fields.

Features

· Cognitive Inspection Suite: Neural networks analyze video streams in real time, flagging emerging issues like hydrogen sulfide corrosion or asbestos cement degradation.

· Augmented Reality Overlay: Superimpose pipe schematics and repair history onto live footage using AR glasses for hands-free operation.

· Multi-Discipline Sensor Array: Choose from methane detectors, pH sensors, or gamma radiation probes for hazardous material inspections.

· Blockchain Documentation: Inspection records are hashed into Ethereum-based smart contracts for tamper-proof regulatory compliance auditing.

· Global Compliance: Meets CE, FCC, and ATEX Zone 1 certifications for explosive atmosphere operations.

Applications

This model is deployed in mega-projects like cross-border water transfer tunnels and subsea hydrocarbon pipelines, where its predictive analytics prevent catastrophic failures. Smart agriculture cooperatives use it to optimize drip irrigation networks, while disaster response teams rely on its radiation sensors to assess Fukushima-style contaminated drains. Aerospace engineers employ the system to inspect cryogenic fuel lines at spaceports, and UNESCO teams utilize it to map ancient aqueducts without physical contact.

Model: QY6688 Details

The QY6688 series has the largest screen size -13.3 inch, 1920*1080 video and Picture Resolution.

The 21mm camera with 12 high-light LEDs plus an 8x zoom to make details inside the pipe clearly visible.

The camera (1080P) can select 512Hz and Self-leveling. Meanwhile camera head is removable, detachable, field service.

  Control box

• 13.3inch super large bright high definition color LED screen

• 1080P (1920*1080 ) screen resolution

• 1080P (1920*1080)  photograph & video resolution

• Support 1TB SD & 1TB USB (MAX) memory

• (Audio, video and pictures recording)

• PC wireless keyboard

• 8X Time（2X 3X 4X 5X 6X 7X 8X）set zero support

• 9000mAh Li-ion battery (Working time 5~6 hours)

• Support car charger

  Cable reel

• 6.8mm (in red) cable diameter

• 10M-50M (33-165ft) reel option

• Support switch Meter & Feet

• Fiberglass push rod

  Camera head

• 21mm (0.8") camera head


• 1/3" COMS sensor

• 1920*1080 (1080P) resolution

• 12 High-Light LEDs (Withe)

• For 2" to 6" (50mm-150mm)

• Optional 512Hz transmitter & Self-leveling

• 21mm X 45 mm (Mine Body)

• Sapphire front lens

• IP68 water resistant

• 304# Stainless Steel Shell

• 100cm (approx.) depth of field

• 15cm (approx.) focus distance

• Water pressure resistance ≤3bar (about 30 meters)

  Skids

• 21mm Skids (46mm/78mm)

  Metal Frame

Automatic padlock: Quickly install & remove the control box

Multi-functional camera holder: Hold the head/ stop the cable

Bracket base: Anti-slip, maintain balance, protective metal frame

Ergonomics handle: reduce the pressure and anti-slip
