QY6688-13.3inch-21mm-5.3mm pipe inspection system for sewer drain and plumbing from qyteco

Overview

The QY6688 Advanced Push Rod Camera System revolutionizes pipeline diagnostics by combining robotic precision with enterprise-level data analytics. Designed for critical infrastructure projects, this system features a motorized push rod with torque-sensitive propulsion, automatically adjusting speed (0-25m/min) based on pipe obstructions detected by its forward-looking LiDAR sensor. The magnesium alloy camera housing withstands acidic environments (pH 1-14) commonly found in wastewater treatment facilities, while its modular architecture allows integration of specialized probes for gas leak detection or wall thickness measurement.

Features

· Omnidirectional Inspection: The 360° articulating camera head rotates ±175° vertically and horizontally via remote control, capturing seamless panoramic views of pipe interiors.

· Geospatial Intelligence: Built-in GLONASS/GPS tracking and an inertial measurement unit (IMU) generate centimeter-accurate 3D pipe maps, synced with BIM models for asset management.

· Multi-Spectral Analysis: Optional UV and thermal imaging modules identify biofilm growth, hidden leaks, or insulation gaps in steam pipes and district heating networks.

· Auto-Documentation Suite: AI-driven software auto-generates inspection reports with defect classifications (PACP standards), severity ratings, and repair cost estimations.

· Harsh Environment Kit: Includes a pressurized nitrogen purge attachment to prevent lens fogging in high-humidity environments and a ceramic-coated rod for corrosive slurry pipes.

Applications

This system is vital for oil and gas operators inspecting offshore risers, geothermal well casings, and LNG terminal pipelines. Urban planners utilize its 3D mapping for smart city drainage upgrades, while aerospace facilities rely on it to inspect fuel hydrant systems beneath runways. Environmental agencies deploy the UV module to detect illegal pollutant discharges into municipal sewers, and railway operators use it to assess culvert conditions along high-speed rail corridors.

Model: QY6688 Details

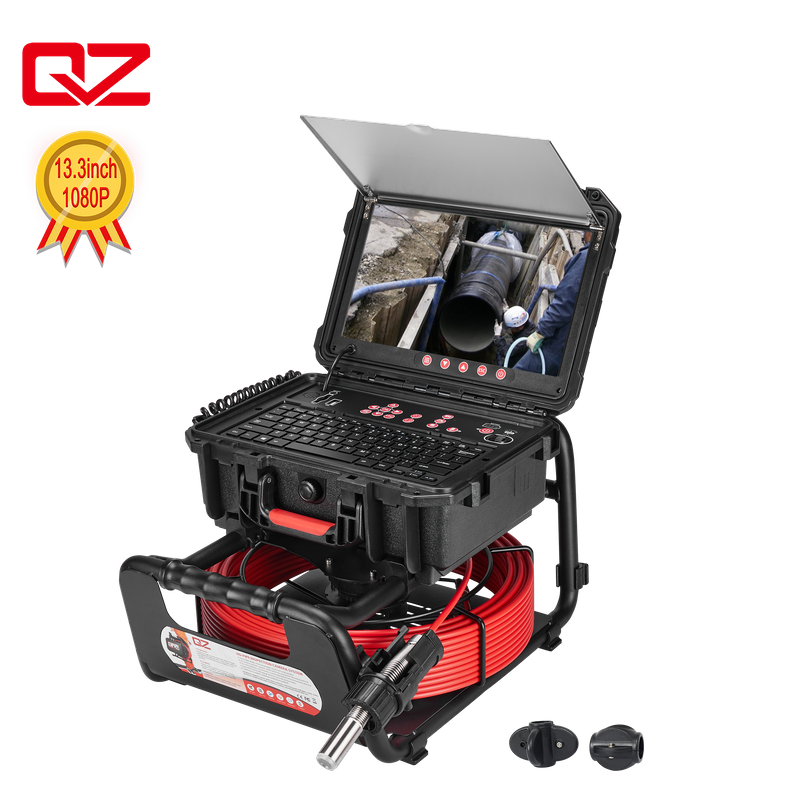

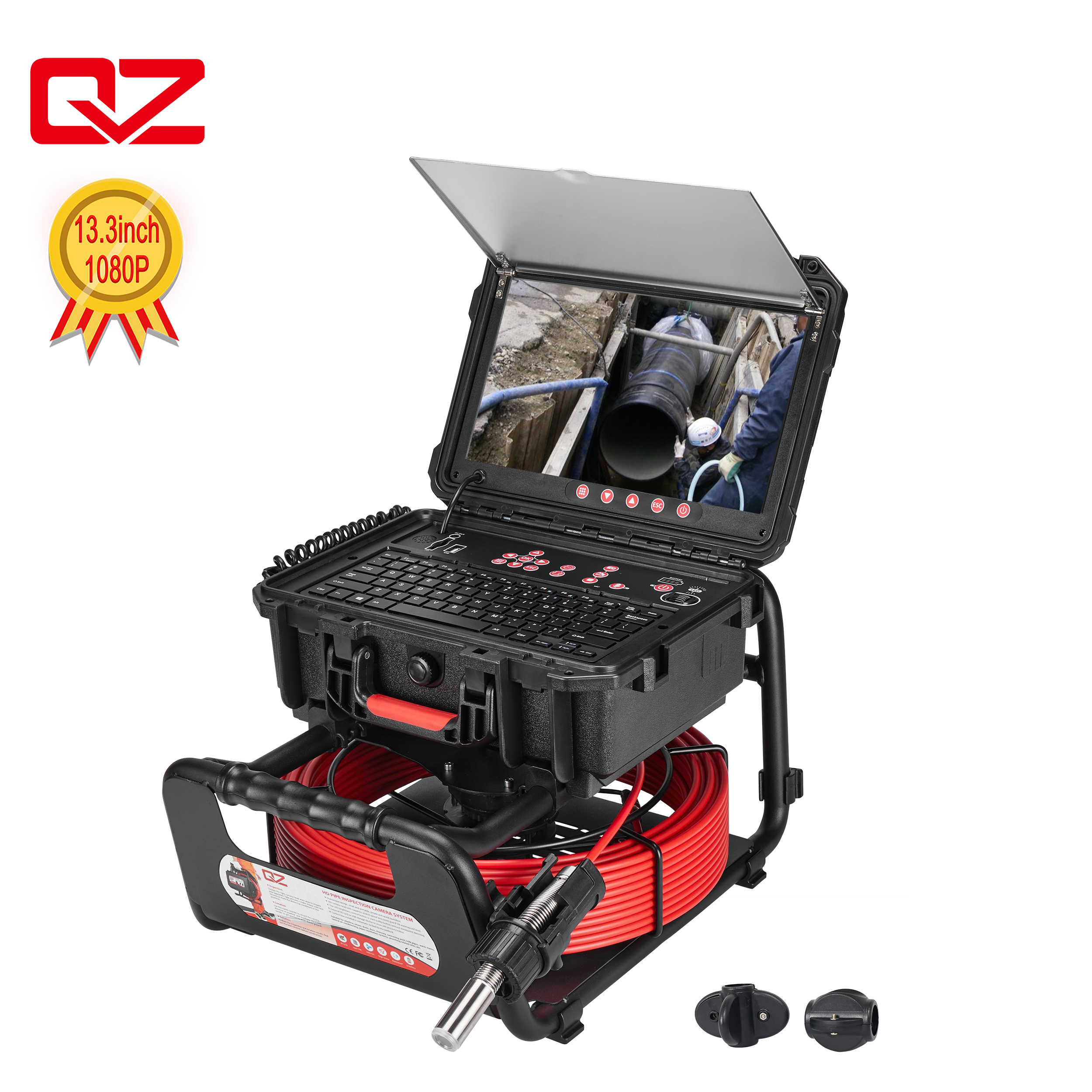

The QY6688 series has the largest screen size -13.3 inch, 1920*1080 video and Picture Resolution.

The 21mm camera with 12 high-light LEDs plus an 8x zoom to make details inside the pipe clearly visible.

The camera (1080P) can select 512Hz and Self-leveling. Meanwhile camera head is removable, detachable, field service.

  Control box

• 13.3inch super large bright high definition color LED screen

• 1080P (1920*1080 ) screen resolution

• 1080P (1920*1080)  photograph & video resolution

• Support 1TB SD & 1TB USB (MAX) memory

• (Audio, video and pictures recording)

• PC wireless keyboard

• 8X Time（2X 3X 4X 5X 6X 7X 8X）set zero support

• 9000mAh Li-ion battery (Working time 5~6 hours)

• Support car charger

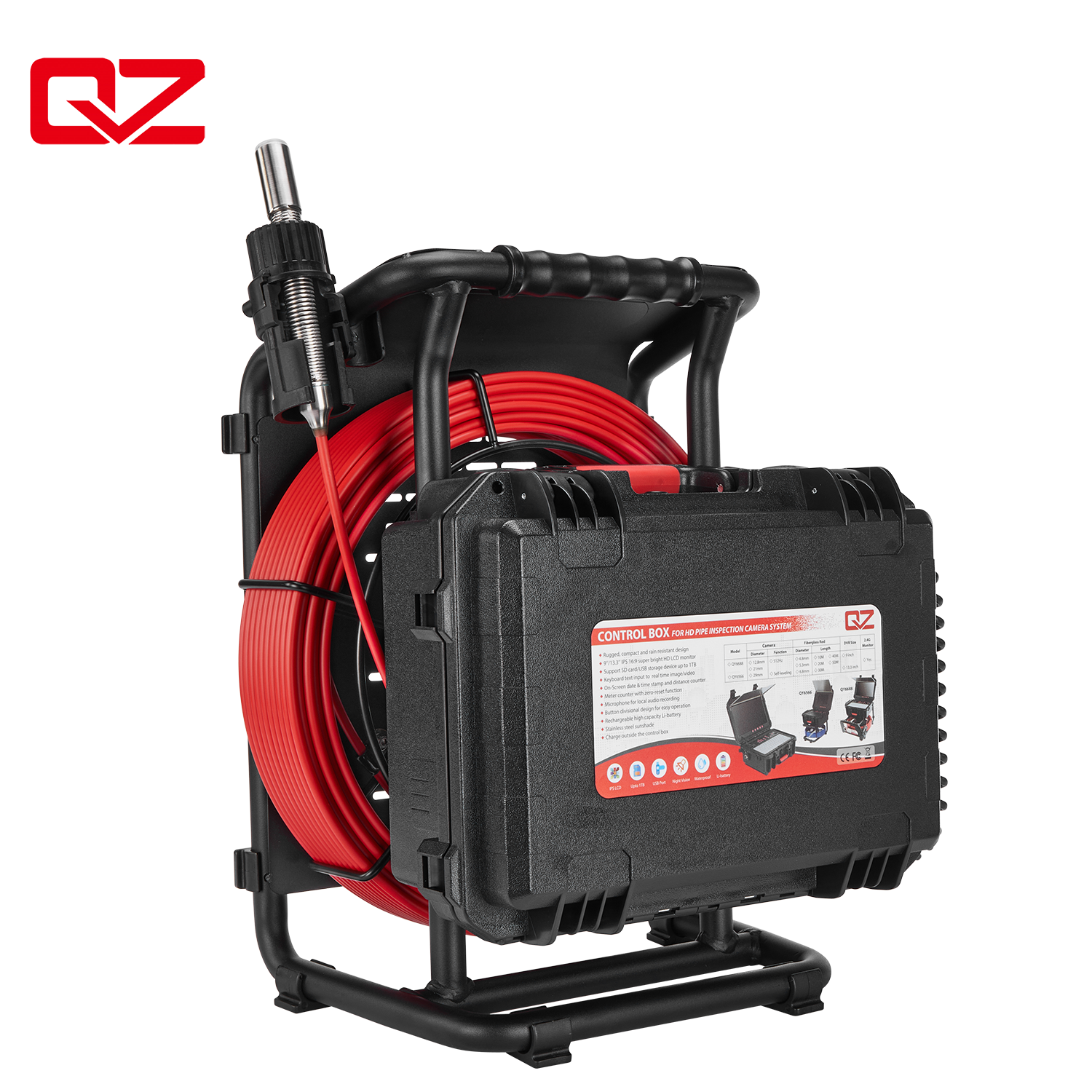

  Cable reel

• 5.3mm (in red) cable diameter

• 10M-50M (33-165ft) reel option

• Support switch Meter & Feet

• Fiberglass push rod

  Camera head

• 21mm (0.8") camera head


• 1/3" COMS sensor

• 1920*1080 (1080P) resolution

• 12 High-Light LEDs (Withe)

•  For 2" to 6" (50mm-150mm)

• Optional 512Hz transmitter & Self-leveling

• 21mm X 45 mm (Mine Body)

• Sapphire front lens

• IP68 water resistant

• 304# Stainless Steel Shell

• 100cm (approx.) depth of field

• 15cm (approx.) focus distance

• Water pressure resistance ≤3bar (about 30 meters)

  Skids

• 21mm Skids (46mm/78mm)

  Metal Frame

• Automatic padlock: Quickly install & remove the control box

• Multi-functional camera holder: Hold the head/ stop the cable

• Bracket base: Anti-slip, maintain balance, protective metal frame

• Ergonomics handle: reduce the pressure and anti-slip
