4.8mm fiberglass
QYTeco

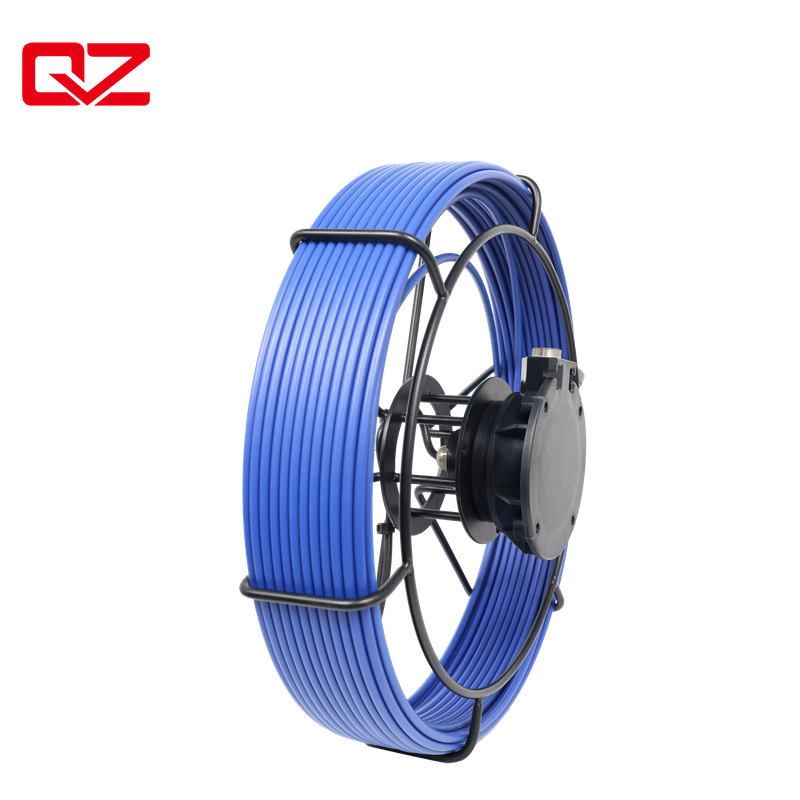

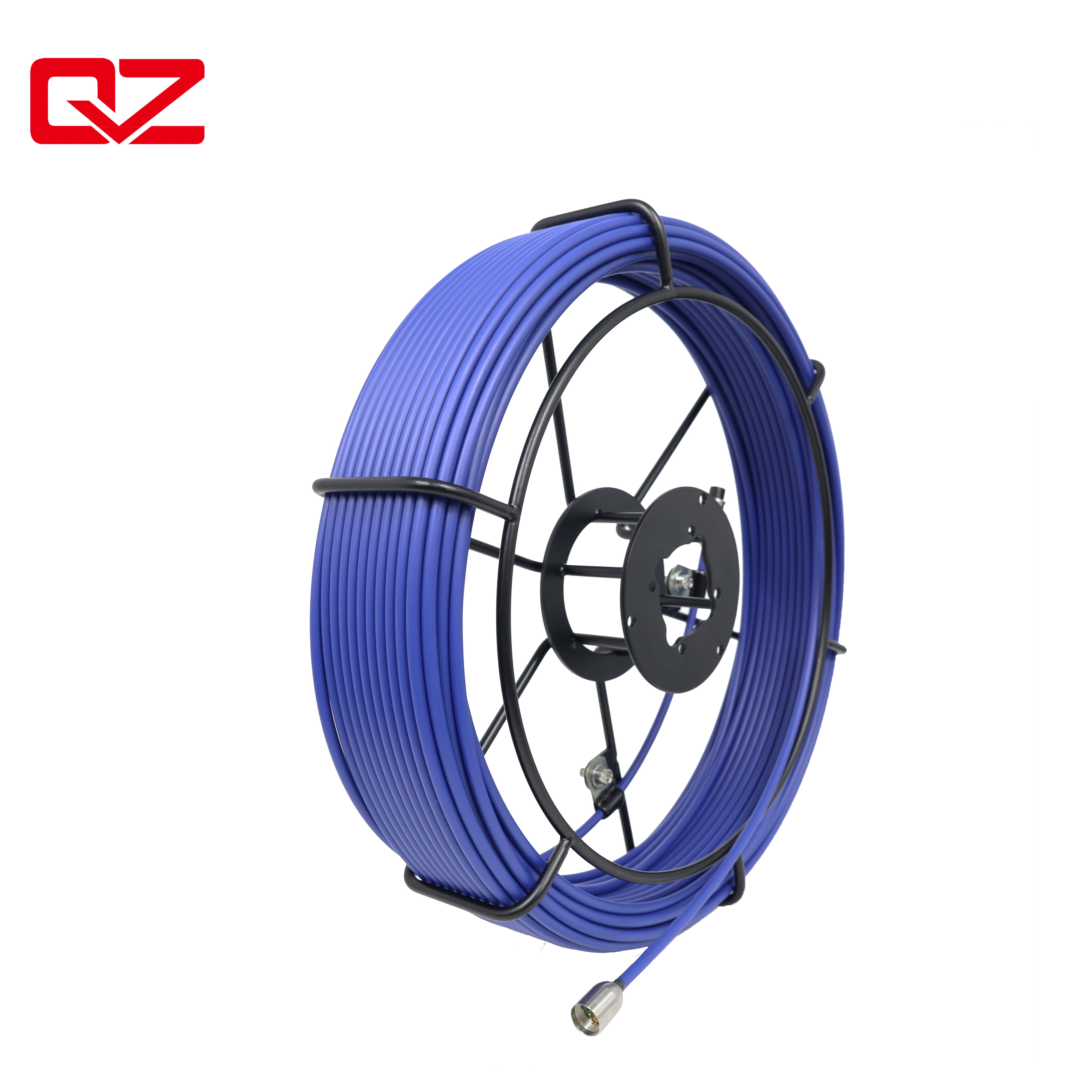

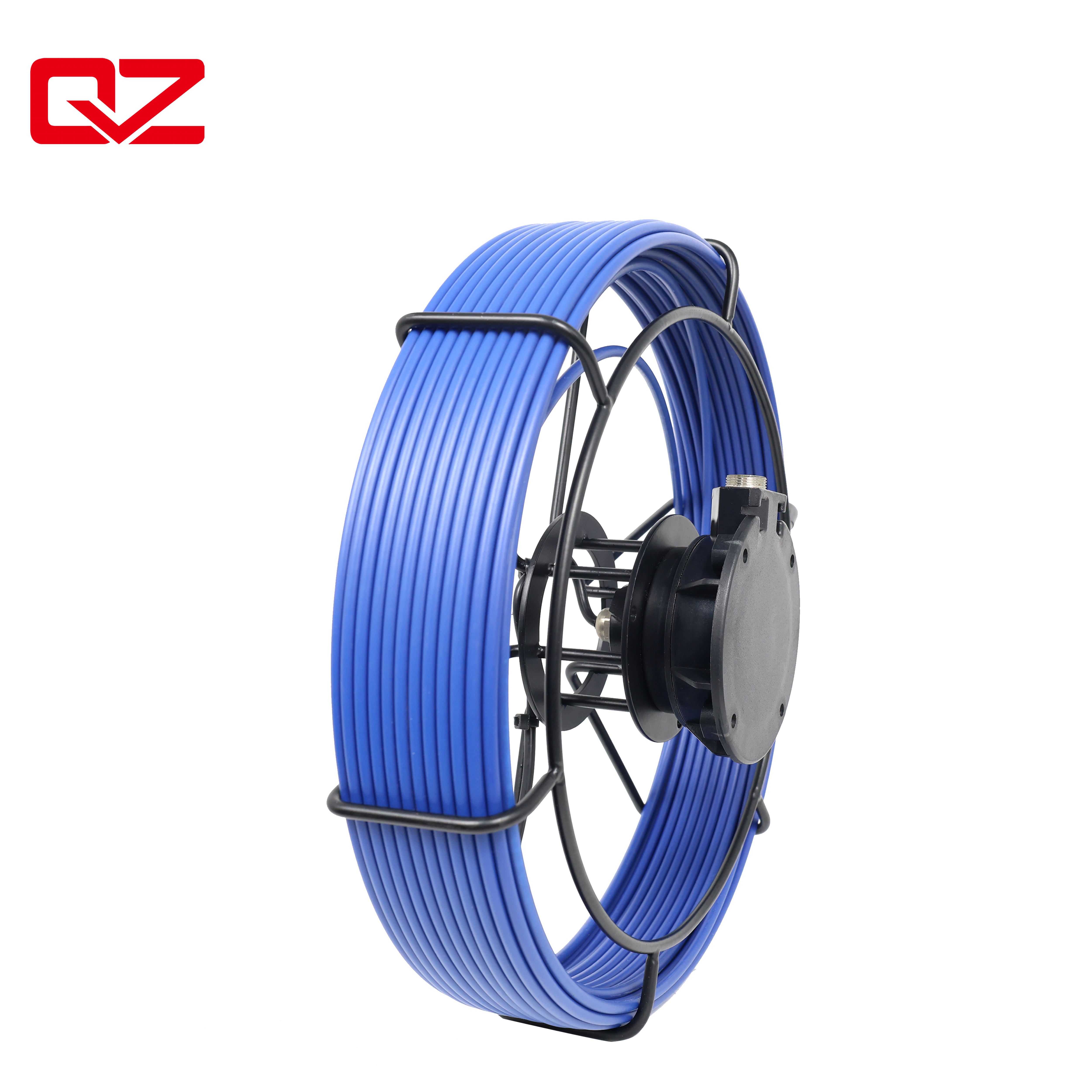

The 4.8mm Fiberglass Push Rod Cable Reel delivers exceptional reach and durability for long-distance pipeline inspections, addressing the challenge of navigating extended pipe runs without signal loss or rod failure. Its ultra-lightweight fiberglass construction (weighing 50% less than steel rods) combines flexibility with high tensile strength (up to 200kg), enabling operators to navigate bends (even 90° elbows) and vertical sections with ease. Available in standard lengths from 30m to 500m—with custom length options (up to 1,000m) for specialized projects like cross-country pipeline inspections or deep underground utility assessments—this reel is the ideal companion for 1080P pipe inspection cameras. The rod’s integrated copper core ensures stable signal transmission even in extended runs, preventing video lag or pixelation that could obscure defect detection. Its compact design also makes it easy to transport, with the reel fitting into most inspection vehicles’ storage compartments.
High-Strength Fiberglass Core: Composed of 75–80% high-grade fiberglass (with a polyester resin binder), this core provides non-conductive properties—critical for inspecting electrical conduits or pipes near power lines. It also offers excellent resistance to corrosion (unlike steel rods, which rust) and chemical degradation (resisting oils, solvents, and acids). Additionally, the fiberglass composition resists UV radiation, preventing material degradation when stored outdoors.
Smooth HDPE Coating: The rod is coated with high-density polyethylene (HDPE), a durable plastic that reduces friction by 25% compared to uncoated rods. This coating also protects the fiberglass core from abrasion, extending the rod’s lifespan by up to 3 years with regular use. The smooth surface makes it easier to push and pull in tight spaces, like narrow 2-inch pipes or pipes with multiple bends.
Precision Reel Mechanism: Equipped with a mechanical length counter (with an accuracy of ±0.5m) and an ergonomic rubberized crank, the reel allows accurate depth tracking—critical for pinpointing the exact location of defects (like leaks or cracks) during repairs. The crank’s design reduces operator fatigue, even when unreeling 500m of rod. The reel also features a locking mechanism to secure the rod in place, preventing it from retracting unexpectedly.
Compact Storage Design: The reel’s frame is made from powder-coated steel (with hot-dip galvanization for rust resistance) and includes foldable handles that reduce its storage footprint by 40% when not in use. This makes it easy to transport to remote job sites (like rural sewer projects) or store in small vehicles. The frame also has built-in mounting points for securing it to inspection carts or vehicle racks.
Compatible with High-Definition Systems: The rod’s integrated copper signal wire supports seamless data transmission for high-definition resolution (1080P) video and images over extended distances (up to 500m without signal boosters). It is compatible with most 1080P pipe inspection cameras and control boxes, with standard RCA or HDMI connectors for easy integration.
This reel is perfect for scenarios requiring long reach and reliable performance:
Residential Drain Inspections: Navigating 2–6 inch pipes to locate common household clogs, like kitchen sink blockages caused by food particles, bathroom drain clogs from hair and soap scum, or basement sump pump line leaks. The 30m–100m length options are ideal for single-family homes, while 200m reels work for multi-unit apartment buildings.
Long-Run Industrial Pipes: Inspecting HVAC ducts (up to 500m in length) in large commercial buildings (like malls or factories), cable conduits for telecommunications networks, and underground utility lines (such as water mains or gas pipelines). The non-conductive fiberglass core is especially useful for inspecting electrical conduits, where steel rods could pose a shock hazard.
Q: What is the maximum recommended push distance for the 4.8mm rod?
A: For optimal performance (without signal loss or rod strain), we recommend 100m for horizontal runs (in straight pipes) and 50m for vertical applications (like deep wells or vertical drains). For longer horizontal runs (up to 200m), pairing the rod with a motorized push system (sold separately) can extend the effective distance without compromising signal stability. Custom 1,000m rods are available for specialized projects but require additional signal boosters.
Q: Is the rod flexible enough to navigate 90° bends?
A: Yes, the fiberglass core has a minimum bending radius of 150mm—allowing it to traverse standard 90° elbows in 4-inch and larger pipes. In tests, the rod successfully navigated 5 consecutive 90° bends (in a 6-inch pipe) without kinking or breaking. For smaller pipes (2–3 inches), we recommend using a 3.5mm fiberglass rod (a complementary product) for better flexibility.
Q: Can it be used with non-fiberglass camera heads?
A: Absolutely, the reel is compatible with most 13–29mm camera heads—including those with stainless steel housing, plastic housing, or integrated lighting (like the 29mm 150° Super Wide Viewing Angle Head). The rod’s standard connector (RCA/HDMI) works with most camera models, and an adapter kit (sold separately) is available for cameras with non-standard outputs (like BNC or USB-C). The lightweight design also ensures the rod can support the weight of most camera heads (up to 200g) without bending.
