29mm head skids
QYTeco

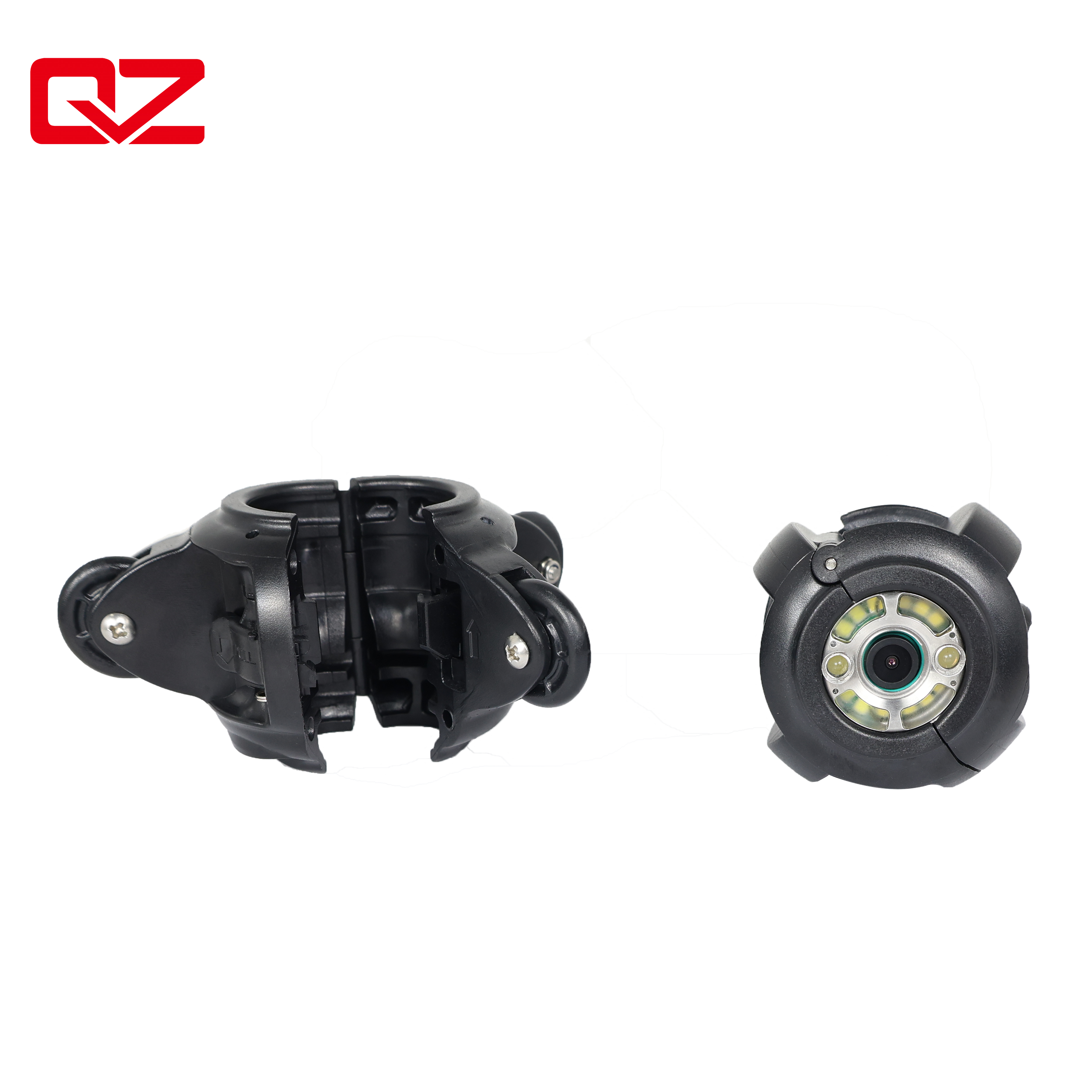

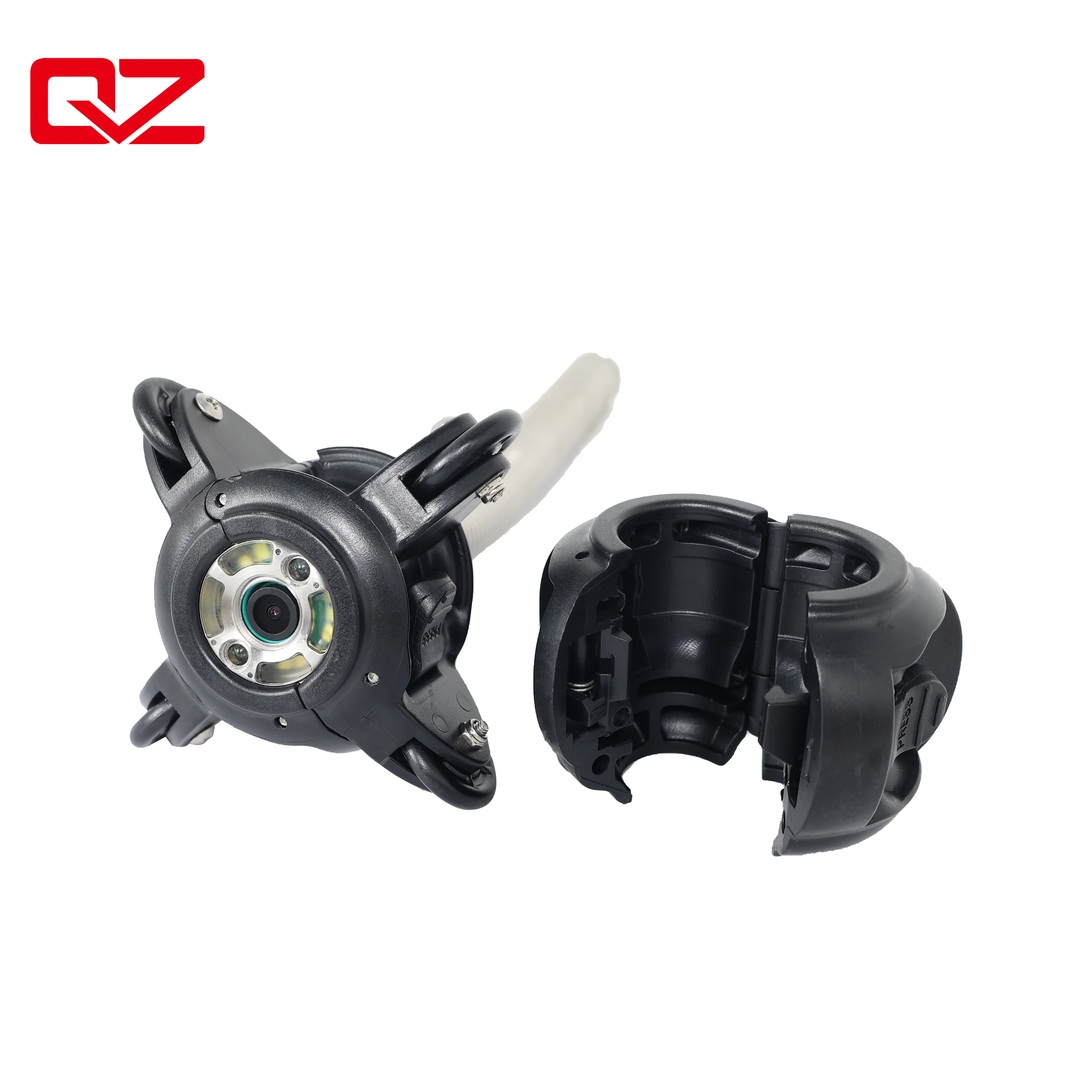

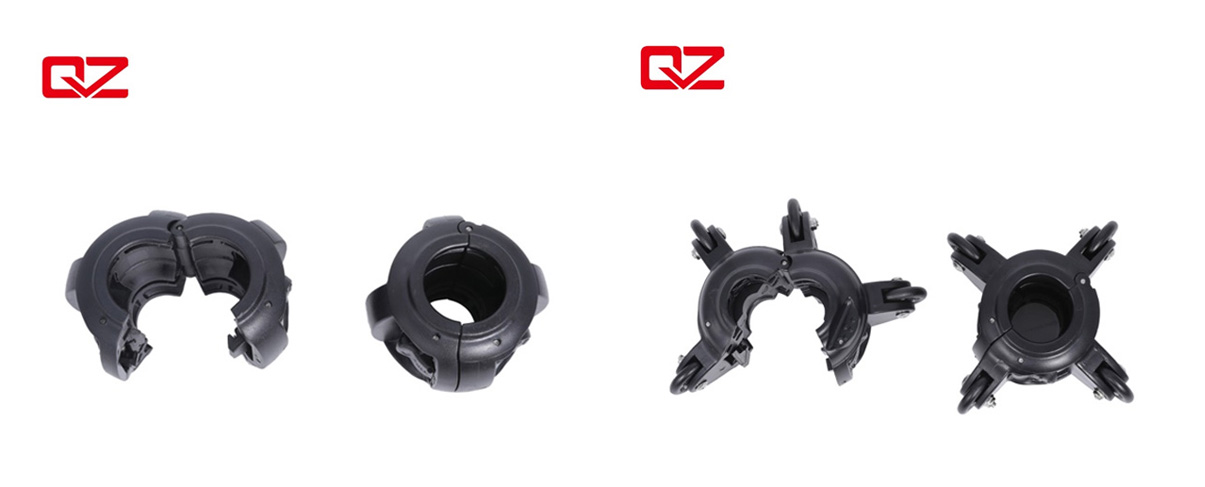

The 29mm Camera Head Skids serve as the protective backbone for inspection equipment, addressing the common issue of camera damage caused by friction, debris, and rough pipe surfaces during traversal. These precision-engineered skids are designed to create a buffer between the camera head and pipe interior, reducing direct contact and minimizing wear on critical components (like the lens, light ring, and stainless steel housing). By lowering friction, they also make it easier for operators to push or pull the camera through uneven pipes—reducing operator fatigue during long inspections. Compatible with most 29mm camera heads (including those with integrated light rings or waterproof designs), they transform standard inspection setups into rugged tools for challenging environments. Field tests show that using these skids increases camera head lifespan by 50%, reducing replacement costs and downtime for inspection teams.
Low-Profile Design: Constructed from high-strength nylon polymer (with 304# stainless steel reinforcement at stress points), the skids measure only 8mm in height—adding minimal bulk while maximizing protection. This slim design ensures they do not get caught on pipe protrusions, welded joints, or sediment buildup that could damage the camera.
Smooth Glide Technology: The skids’ contact points are coated with Teflon, a low-friction material that reduces drag by 40% compared to uncoated skids. This makes it easier to navigate through uneven surfaces like corroded metal pipes (with rust flakes) or concrete pipes (with rough inner linings), even in vertical or angled pipe sections.
Universal Compatibility: Designed to fit seamlessly with 29mm camera heads featuring stainless steel housing, the skids use a flexible clamping system that adjusts to minor variations in camera diameter (from 28mm to 30mm). They are also compatible with models with integrated light rings, as the design avoids blocking the light output or camera’s field of view.
Quick-Release Mechanism: Equipped with a spring-loaded latch, the skids enable tool-free installation and removal in under 30 seconds. This saves valuable time during equipment setup—critical for inspection teams working on tight schedules or in remote locations where tools may be limited.
Chemical Resistance: The nylon polymer and Teflon coating withstand exposure to common sewer contaminants, including oils, detergents, mild acids (like sulfuric acid), and alkalis (like sodium hydroxide). This ensures the skids do not degrade or become brittle over time, even with daily use in harsh environments.
These skids are essential for scenarios where camera protection is non-negotiable:
Aging Infrastructure Inspection: In rusted or debris-filled older pipes (such as 50+ year-old cast-iron pipes in historic districts), the skids protect the camera from abrasion caused by rust flakes, loose mortar, or sediment that has accumulated over decades. They are also used to inspect asbestos-cement pipes, where damaging the pipe’s inner lining could release harmful fibers.
Industrial Drain Maintenance: In manufacturing facilities (like food processing plants or automotive factories), the skids safeguard equipment during inspections of drains with heavy particulate matter (such as food scraps, metal shavings, or paint residues). They prevent the camera lens from being scratched or clogged by these materials, ensuring clear footage.
Root-Infested Pipelines: When navigating pipes with invasive root growth (common in residential sewer laterals near trees), the skids prevent snags and lens damage. The smooth Teflon coating allows the skids to glide over root tendrils without getting caught—reducing the risk of pulling the camera off course or damaging the roots (which could lead to further pipe blockages).
Q: Will the skids affect the camera’s viewing angle?
A: No, the skids’ low-profile design (8mm height) and strategic placement (at the camera’s base, outside the field of view) are engineered to stay clear of the 150° viewing range. In laboratory tests, the skids did not block any part of the camera’s footage—even when the camera was angled to inspect pipe walls or joints. This ensures unobstructed footage capture for accurate defect detection.
Q: How much weight do the skids add to the camera head?
A: Only 35 grams—less than the weight of a standard AA battery. This lightweight design ensures the push rod’s load capacity remains unaffected, even when navigating vertical pipe sections (where extra weight could cause the camera to slip). It also does not impact the camera’s balance, making it easier for operators to control the device.
Q: Are they compatible with waterproof camera heads?
A: Yes, the skids are designed to maintain the camera’s IP68 rating. The clamping system does not penetrate the camera’s waterproof seal, and the materials (nylon, stainless steel, Teflon) are all waterproof and resistant to water damage. In submersion tests, camera heads with skids retained their waterproofing even after 72 hours underwater—same as unskidded cameras.
