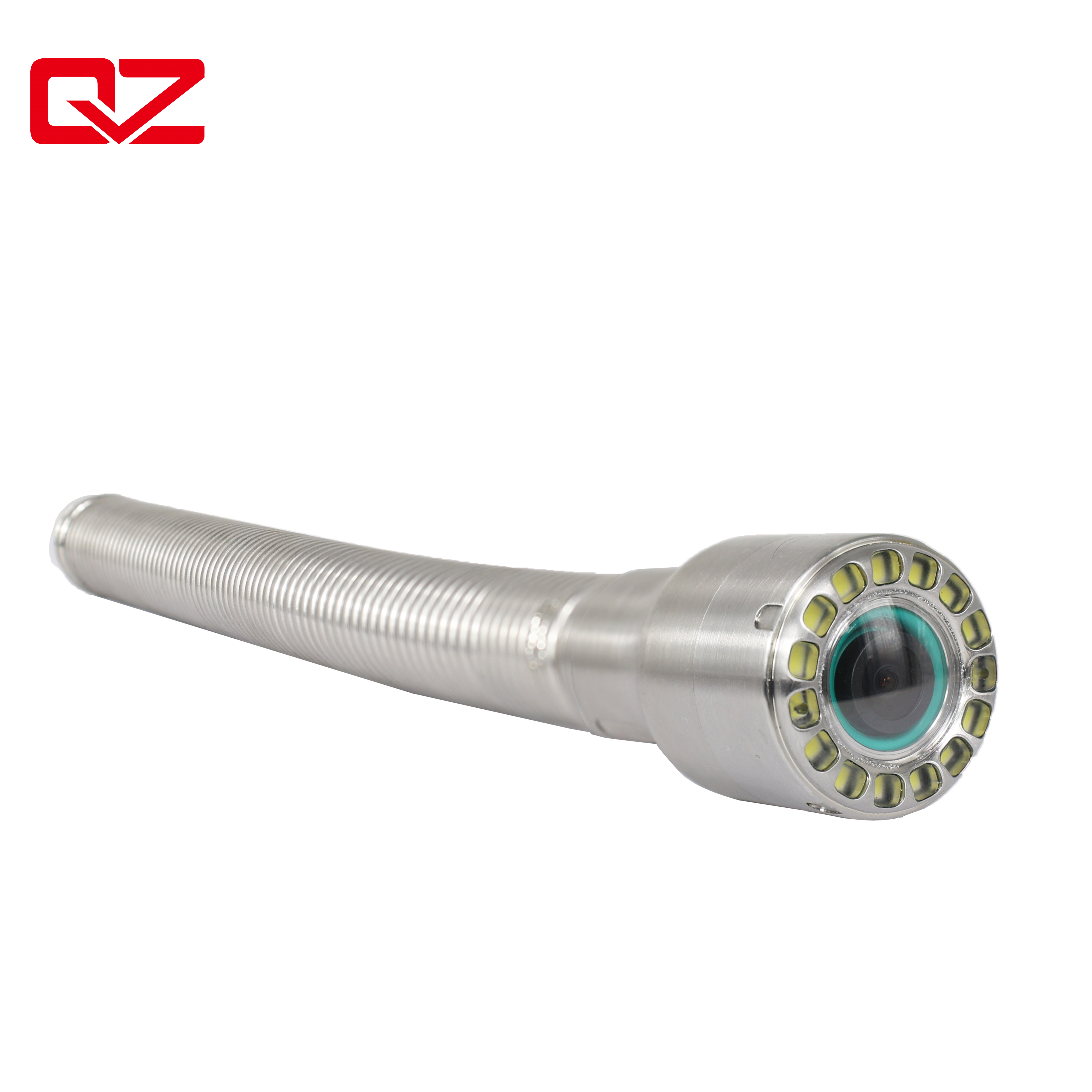

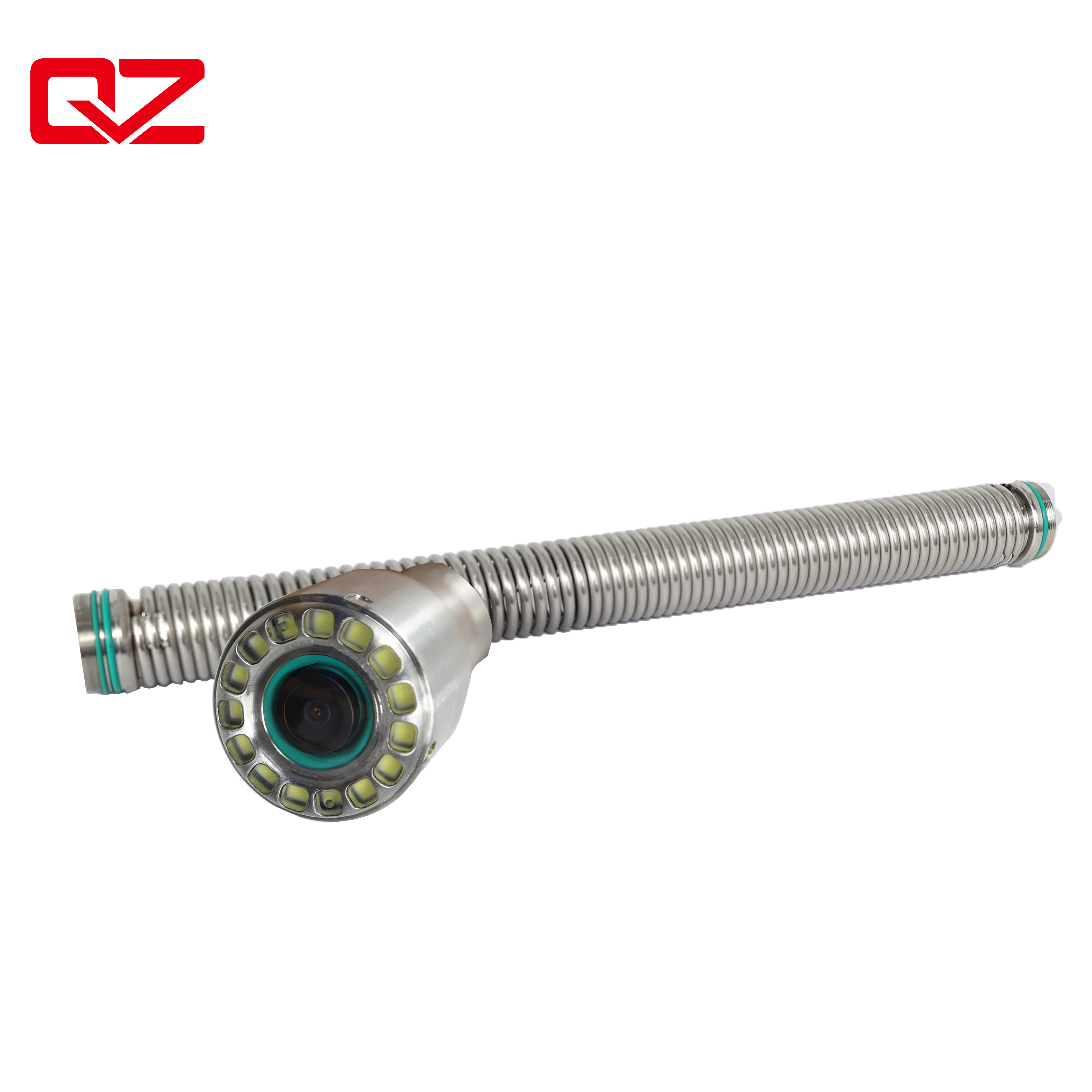

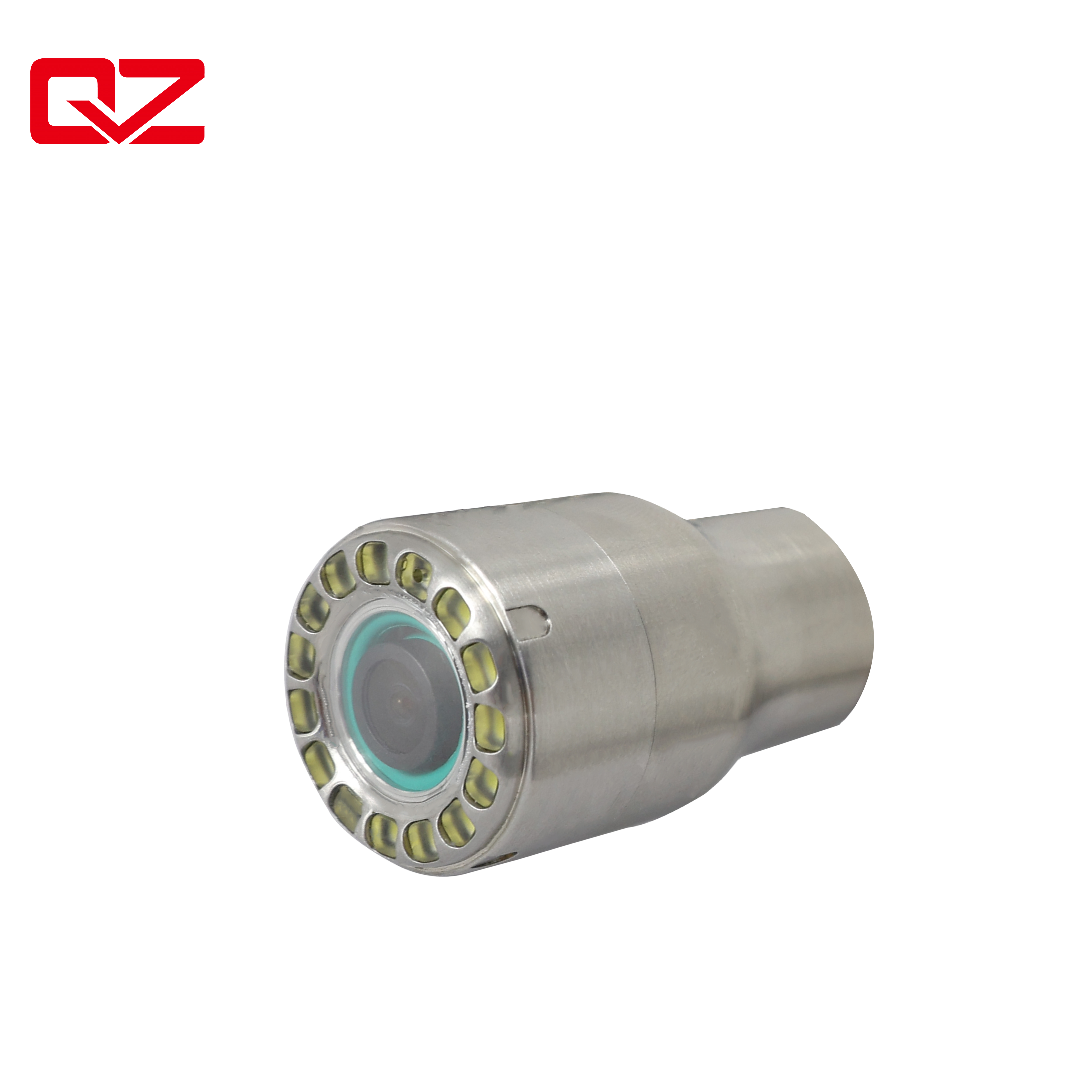

29mm-150° camera head
QYTeco
150°Wide Angle
Sapphire Lens Cover
Waterproof IP68
15 High-Lights LED
Stainless Steel Case
Optional 512Hz and Self-Leveling
Detachable Camera Head
Field Serviceable
29mm camera head for 3''-8'' (80-200mm)pipelines
Camera | Sensor | 1/ 3" CMOS |
Resolution | 1080P (1920*1080) | |
View Angle | 150° | |
Focus Distance | 10cm | |
Depth Of Field | 150cm(approx) | |
Camera Size | Φ29*50mm(Main body) | |
Camera Length | 260mm | |
Front Lens | Sapphire | |
Shell Material | 304#Stainless Steel | |
Lighting | Built-in 15×LED (White) | |
LED Driver | Built-in Dimmer(Pulley button) | |
Water Pressure (Bar Rating) | 3Bars (30 meters) |
Designed for efficient pipeline diagnostics, the 29mm 150° Super Wide Viewing Angle Head redefines sewer inspection precision by addressing the core challenge of blind spots in pipe assessments. This compact camera head integrates cutting-edge aspherical optics and advanced image sensors to capture a panoramic view, allowing operators to cover entire pipe cross-sections in a single pass—eliminating the need to reposition the camera repeatedly. Ideal for medium to large diameter pipes (ranging from residential mainlines to industrial ducts), it seamlessly pairs with modern inspection systems (including portable and vehicle-mounted setups) to reduce inspection time by up to 30% compared to standard 90° angle cameras. Whether navigating municipal sewers clogged with debris, industrial pipelines exposed to corrosive fluids, or storm drains flooded after heavy rain, its robust construction—tested to withstand temperatures from -20°C to 60°C—ensures reliable performance in harsh, variable environments.
150° Super Wide Viewing Angle: Engineered with a wide-angle optical lens that covers 50% more area than conventional 90° heads, this feature ensures no defect (such as small cracks, root tendrils, or sediment buildup) goes undetected, even in pipes with irregular inner walls.
Scratch Resistant Sapphire Lens: Made from synthetic sapphire—a material second only to diamond in hardness—this lens protects against abrasions from sharp debris (like broken concrete fragments or rusted metal shavings) and rough pipe interiors, maintaining high-definition resolution (1920×1080 pixels) even after 1,000+ hours of continuous use.
Incorporated Light Ring: Equipped with 6 adjustable white LEDs that deliver 320 lumens of uniform light, this ring eliminates shadowing in dark, water-filled pipelines. Unlike single-point LEDs, it distributes light evenly across the camera’s field of view, ensuring clear visibility of pipe joints and welds.
Stainless Steel Housing: Crafted from food-grade 304# stainless steel, the housing offers superior corrosion resistance to chemicals commonly found in sewers (such as hydrogen sulfide, ammonia, and mild acids) and prevents rusting even after prolonged submersion.
IP68 Waterproof Rating: Certified to IP68 standards, this camera head withstands submersion up to 10 meters for 72 hours continuously, ensuring uninterrupted operation in fully flooded pipes or deep storm drains.
This versatile camera head excels in scenarios where comprehensive coverage and durability are critical:
Municipal Sewer Systems: Inspecting 8–15 inch gravity sanitary pipes to identify common issues like fatbergs (accumulations of grease and waste), lateral pipe cracks, and root intrusions that can lead to catastrophic pipe failures. It is also used to assess pipe condition before rehabilitation projects (such as relining or replacement).
Industrial Pipelines: Diagnosing issues in chemical processing ducts, petrochemical wastewater lines, and manufacturing facility drains—where corrosion resistance and high-definition imaging are essential for detecting leaks that could contaminate products or harm the environment.
Storm Drain Networks: Navigating wet, debris-laden environments to assess structural integrity after heavy rainfall. It helps identify blockages that could cause urban flooding and damage to roadways or buildings.
Q: What pipe diameters is this camera head suitable for?
A: It performs optimally in pipes with inner diameters ranging from 4 inches (100mm) to 24 inches (600mm). This range covers most residential mainlines, mid-sized industrial pipes, and municipal sewer laterals, eliminating the need to switch between multiple camera heads for different projects. Its compact 29mm profile also allows it to pass through narrow pipe segments or fittings (like elbows and tees) within this diameter range.
Q: How does the sapphire lens compare to glass lenses?
A: Sapphire lenses offer 3x greater scratch resistance than tempered glass and 5x greater resistance than standard optical glass. In field tests, sapphire lenses retained high-definition resolution even after being dragged across rough concrete pipe interiors, while glass lenses showed visible scratches and image degradation after just 100 hours of use. This makes sapphire ideal for abrasive environments like concrete, clay, or cast-iron pipes.
Q: Can the LED brightness be adjusted?
A: Yes, the integrated light ring features 5-level brightness control (from 20% to 100% power). This flexibility prevents glare in shallow, well-lit pipes (such as above-ground industrial ducts) while maintaining visibility in deep, dark sections (like 10-meter-deep municipal sewers). The brightness can be adjusted in real time via the connected control box, allowing operators to optimize lighting for changing pipe conditions.
