QY6688-13.3inch-29mm-6.8mm
QYTeco

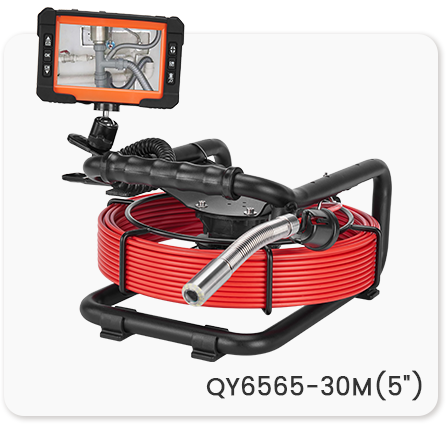

The QY6565 Entry Level Sewer Drain Camera is a cost-effective and user-friendly solution engineered to streamline pipeline diagnostics across residential, municipal, and industrial settings. Tailored for small contractors, municipal maintenance crews, and DIY enthusiasts, this camera system excels in identifying blockages, cracks, corrosion, and structural anomalies in pipes ranging from 50mm to 300mm in diameter. Its compact design prioritizes portability without sacrificing durability, making it an indispensable tool for routine inspections, emergency repairs, and preventive maintenance. With intuitive operation and robust construction, the QY6565 bridges the gap between affordability and professional-grade performance, empowering users to tackle drainage challenges with confidence.
1. High-Resolution Imaging: The 720p HD waterproof camera head captures crisp, detailed footage in challenging environments, including low-light or turbid water conditions, thanks to adjustable LED illumination.
2. Compact and Maneuverable: Featuring a slim 10mm camera probe and a flexible, abrasion-resistant 20-meter cable, the system navigates tight bends and complex pipe layouts effortlessly.
3. All-Weather Durability: The IP68-rated camera housing withstands submersion up to 10 meters and resists corrosion from chemicals, sewage, and abrasive materials, ensuring reliability in harsh conditions.
4. Smart User Interface: The 5-inch anti-glare LCD monitor supports real-time video recording, snapshot capture, and playback, with an intuitive menu system and SD card storage for easy data retrieval.
5. Long-Lasting Power: A high-capacity lithium-ion battery delivers up to 6 hours of continuous operation, complemented by a quick-charge function for minimal downtime between jobs.
The QY6565 is a versatile asset across multiple industries. In residential contexts, it diagnoses blocked kitchen sinks, bathroom drains, and septic tanks caused by grease buildup or tree root intrusion. Municipalities deploy it for inspecting stormwater drains, culverts, and sewer lines to prevent urban flooding and infrastructure deterioration. Industrial facilities rely on the camera to assess underground utility lines, HVAC ducts, and chemical drainage systems. Additionally, plumbing schools and vocational training centers incorporate the QY6565 into their curricula, providing hands-on experience in modern pipe inspection techniques. Its affordability and ease of use also make it ideal for property managers conducting pre-purchase inspections of aging buildings or real estate developers ensuring compliance with drainage codes.

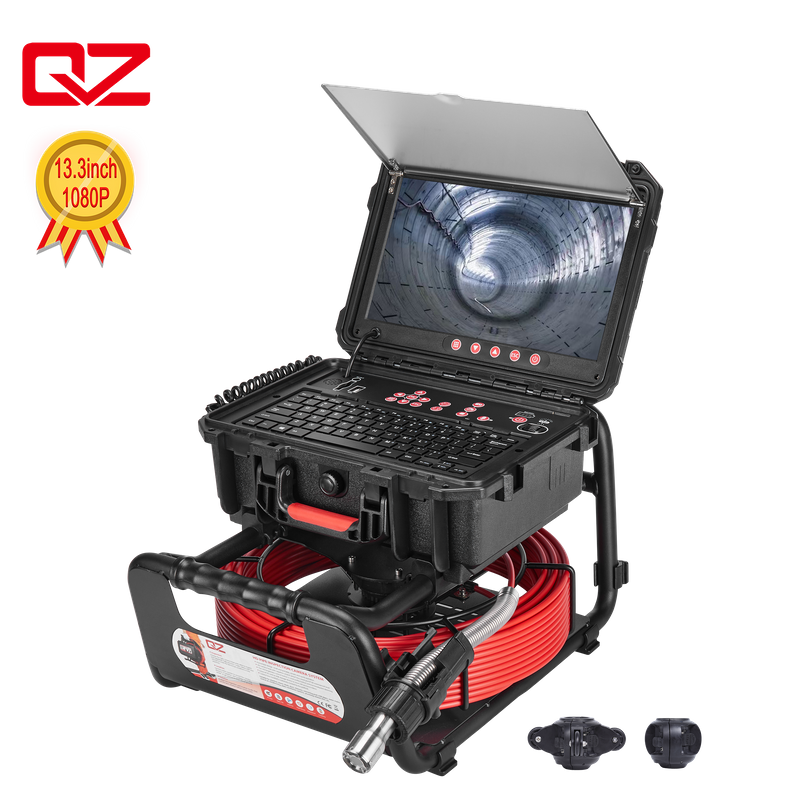

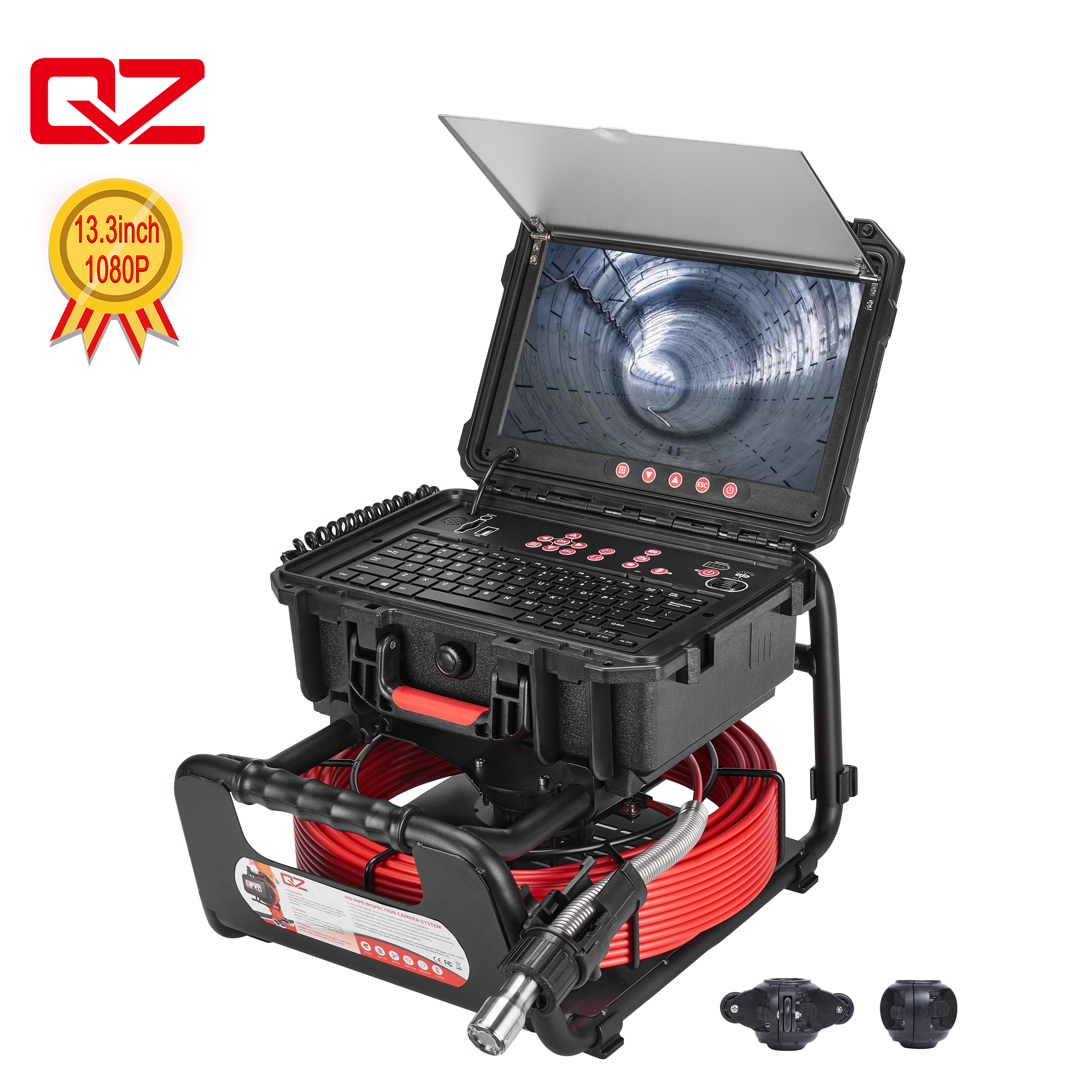

Model: QY6688 29mm 6.8mm reel Details
The QY6688 series has the largest screen size 13.3 inch,
1920*1080 video and Picture Resolution.
The 29mm camera with 12 high-light LEDs plus an 8x zoom.
Equipped with high beam for long distance inspection.
The camera (1080P) can select 512Hz and Self-leveling.
Meanwhile camera head is removable, detachable, field service.
Control box
13.3inch super large bright high definition color LED screen
1080P (1920*1080 ) screen resolution
1080P (1920*1080) photograph & video resolution
Support 1TB SD & 1TB USB (MAX) memory
(Audio, video and pictures recording)
PC wireless keyboard
8X Time（2X 3X 4X 5X 6X 7X 8X）set zero support
9000mAh Li-ion battery (Working time 5~6 hours)
Support car charger
Cable reel
6.8mm (in red) cable diameter
10M-50M (33-165ft) reel option
Support switch Meter & Feet
Fiberglass push rod
Camera head
29mm (1.1") camera head
1/3" COMS sensor
1920*1080 (1080P) resolution
12 High-Light LEDs (Withe)
Equipped low beam and high beam
For 3" to 8" (80mm-200mm)
Optional 512Hz transmitter & Self-leveling
29mm X 50 mm (Mine Body)
Sapphire front lens
IP68 water resistant
304# Stainless Steel Shell
100cm (approx.) depth of field
15cm (approx.) focus distance
Water pressure resistance ≤3bar (about 30 meters)
Skids
29mm Toolless skids (65mm/105mm)
Metal Frame
Automatic padlock: Quickly install & remove the control box
Multi-functional camera holder: Hold the head/ stop the cable
Bracket base: Anti-slip, maintain balance, protective metal frame
Ergonomics handle: reduce the pressure and anti-slip
