QY6566-9inch-21mm-5.3mm
QYTeco
Availability: | |
---|---|
Product Operate Guide
Lighter Frame Sewer Cameras
Model: QY6688 Details

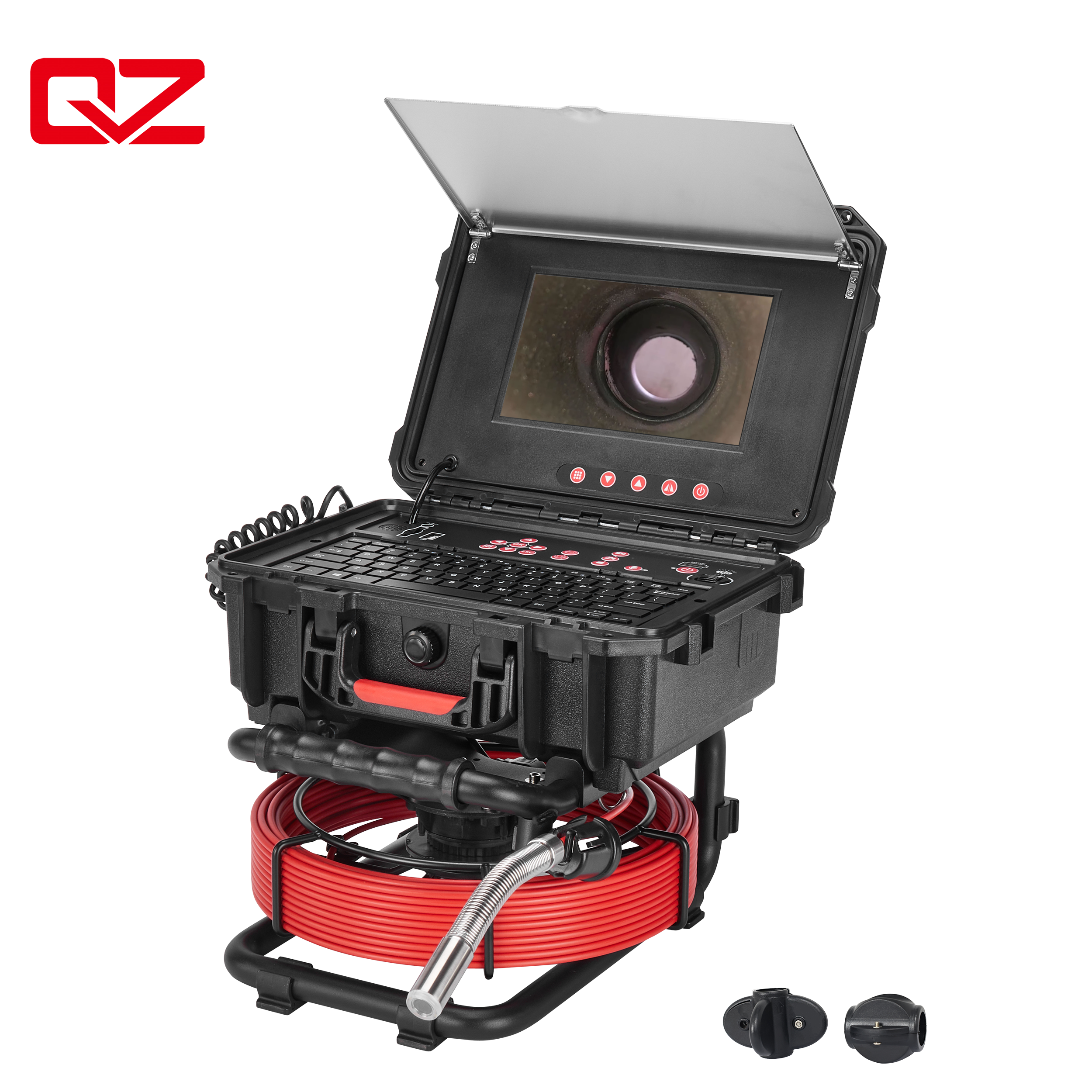

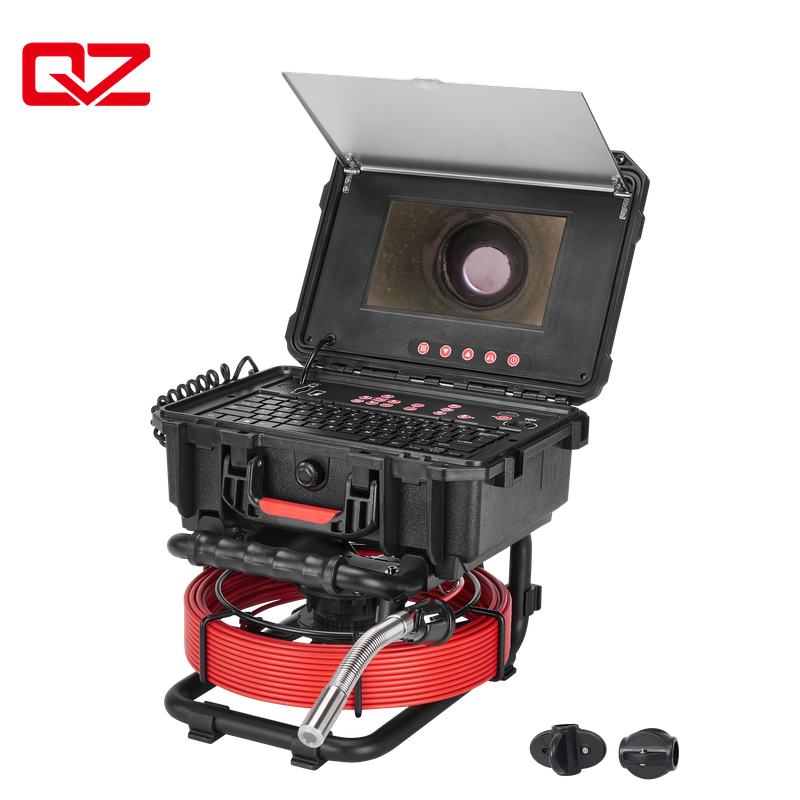

The QY6566 series has 9 inch screen, 1920*1080 video and Picture Resolution.
The 21mm camera with 12 high-light LEDs plus an 8x zoom to make details inside the pipe clearly visible.
The camera (1080P) can select 512Hz and Self-leveling. Meanwhile camera head is removable, detachable, field service.
Control box
9inch high definition color LED screen
1080P (1920*1080 ) screen resolution
1080P (1920*1080) photograph & video resolution
Support 1TB SD & 1TB USB (MAX) memory
(Audio, video and pictures recording)
PC wireless keyboard
8X Time(2X 3X 4X 5X 6X 7X 8X)set zero support
9000mAh Li-ion battery (Working time 5~6 hours)
Support car charger
Cable reel
5.3mm (in red) cable diameter
10M-50M (33-165ft) reel option
Support switch Meter & Feet
Fiberglass push rod
Camera head
21mm (0.8") camera head
1/3" COMS sensor
1920*1080 (1080P) resolution
12 High-Light LEDs (Withe)
For 2" to 6" (50mm-150mm)
Optional 512Hz transmitter & Self-leveling
21mm X 45 mm (Mine Body)
Sapphire front lens
IP68 water resistant
304# Stainless Steel Shell
100cm (approx.) depth of field
15cm (approx.) focus distance
Water pressure resistance ≤3bar (about 30 meters)
Skids
21mm Skids (46mm/78mm)
Metal Frame
Automatic padlock: Quickly install & remove the control box
Bracket base: Anti-slip, maintain balance, protective metal frame
Ergonomics handle: reduce the pressure and anti-slip
1 X AV cable
2 X Pothook
1 X Car charger
1 X Screwdriver
1 X User Manual
1 X Metal frame
6 X Water proof ring
1 X Connection cable
1 X DC12V Power supply
6 X Screw and nut for 21mm skid
1 X 46/78mm skid for 21mm camera head
1 X Control box with DVR & wireless keyboard
1 X Cable reel 5.3mm with 21mm camera head
